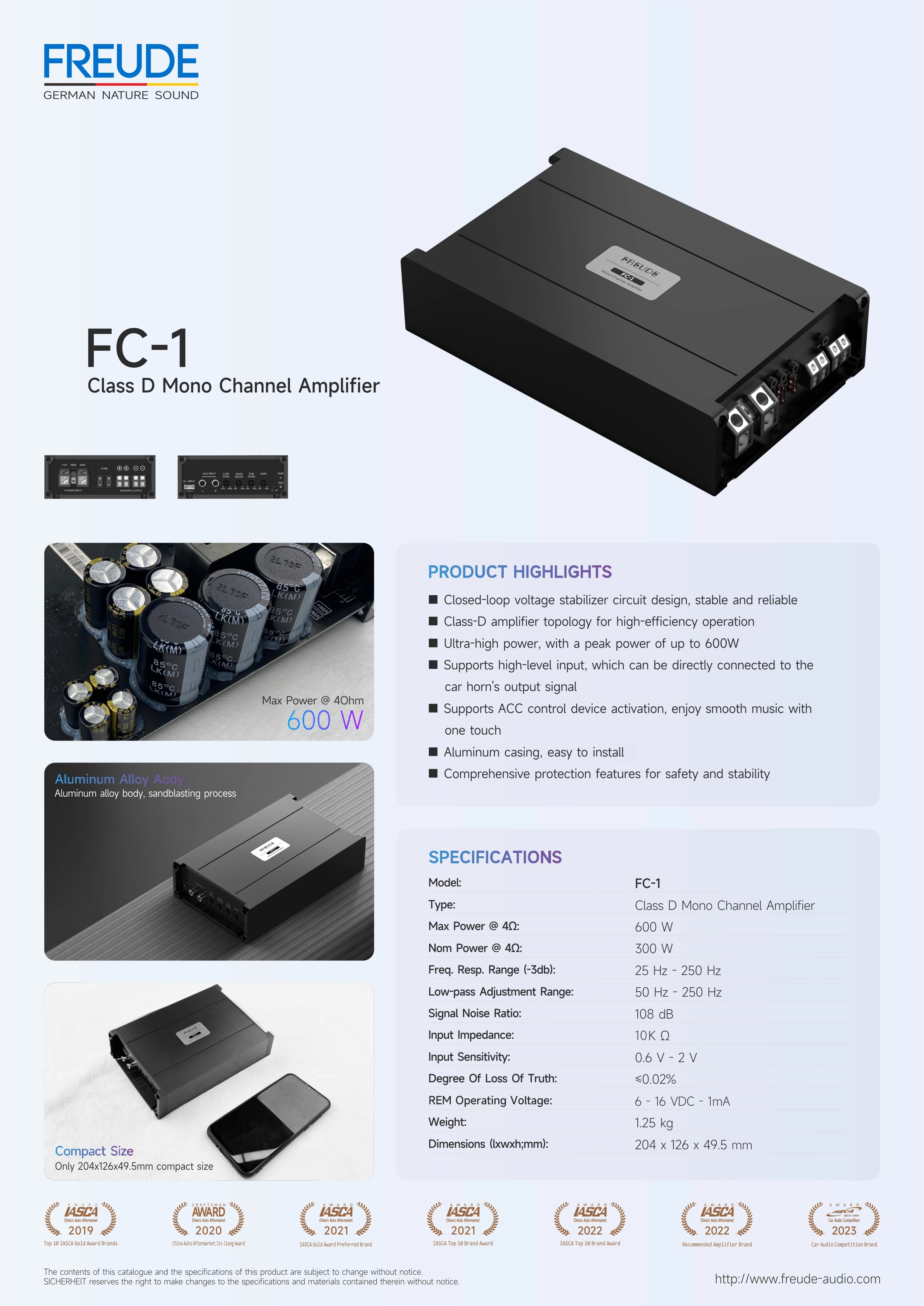

■ Closed-loop voltage stabilizer circuit design, stableand reliable
■ Class-D amplifier topology for high-efficiency operation
■ Ultra-high power, with a peak power of up to 600W
■ Supports high-level input, which can be directlyconnected to the car horn's output signal
■ Supports ACC control device activation, enjoy smoothmusic with one touch
■ Aluminum casing, plug and play, easy to install
■ Comprehensive protection features for safety and stability
| Model: |
FC-1 |
| Type: |
Class D Mono Channels Amplifier |
| Max Power @ 4Ω: |
600 W |
| Nom Power @ 4Ω: |
300 W |
| Freq. Resp. Range (-3db): |
25 Hz - 250 Hz |
| Low-pass Adjustment Range: |
50 Hz - 250 Hz |
| Signal Noise Ratio: |
108 dB |
| Input Impedance: |
22K Ω |
| Input Sensitivity: |
0.6 V - 2 V |
| Degree Of Loss Of Truth: |
≤0.02% |
| Power Supply Voltage Range: |
10 - 16 VDC |
| Weight: |
1.25 kg |
| Dimensions (LxWxH;mm): |
204 x 126 x 49.5 |
