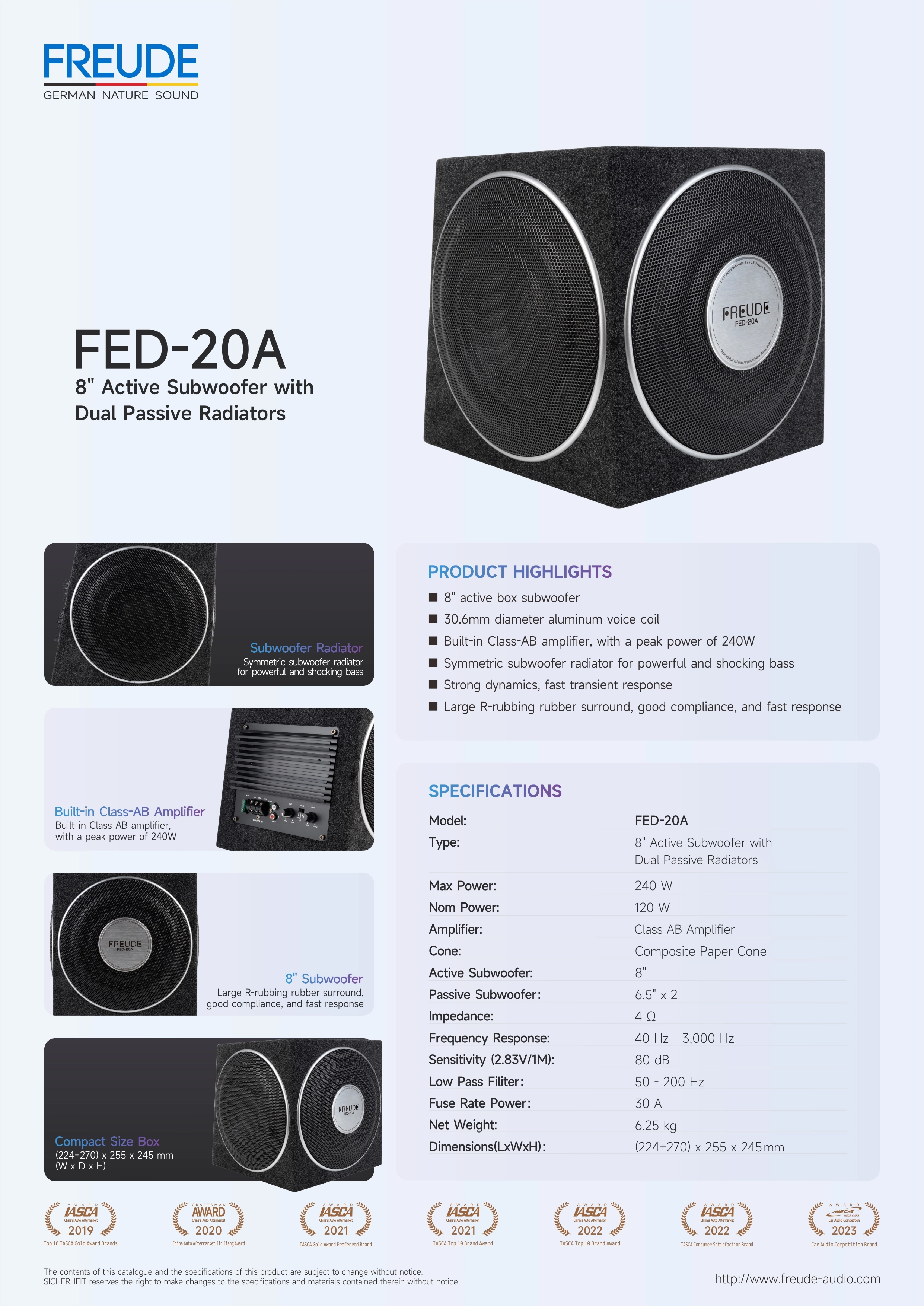

■ 8" active box subwoofer
■ 30.6mm diameter aluminum voice coil
■ Built-in Class-AB amplifier, with a peak power of 240W
■ Symmetric subwoofer radiator for powerful and shocking bass
■ Strong dynamics, fast transient response
■ Large R-rubbing rubber surround, good compliance, and fast response
| Model: |
FED-20A |
| Type: |
Active subwoofer with dual passive radiator |
| Max Power: |
240 W |
| Nom Power: |
120 W |
| Amplifier: |
AB Class |
| Cone: |
Composite Paper Cone |
| Active Subwoofer: |
8" |
| Passive Subwoofer： |
6.5" x 2 |
| Impedance: |
4 Ω |
| Frequency Response: |
40 Hz - 3,000 Hz |
| Sensitivity (2.83V/1M): |
80 dB |
| Low Pass Filiter： |
50 - 200 Hz |
| Fuse Rating: |
30 A |
| Net Weight: |
6.25 kg |
| Dimensions (LxWxH;mm): |
(224+270) x 255 x 245 |
