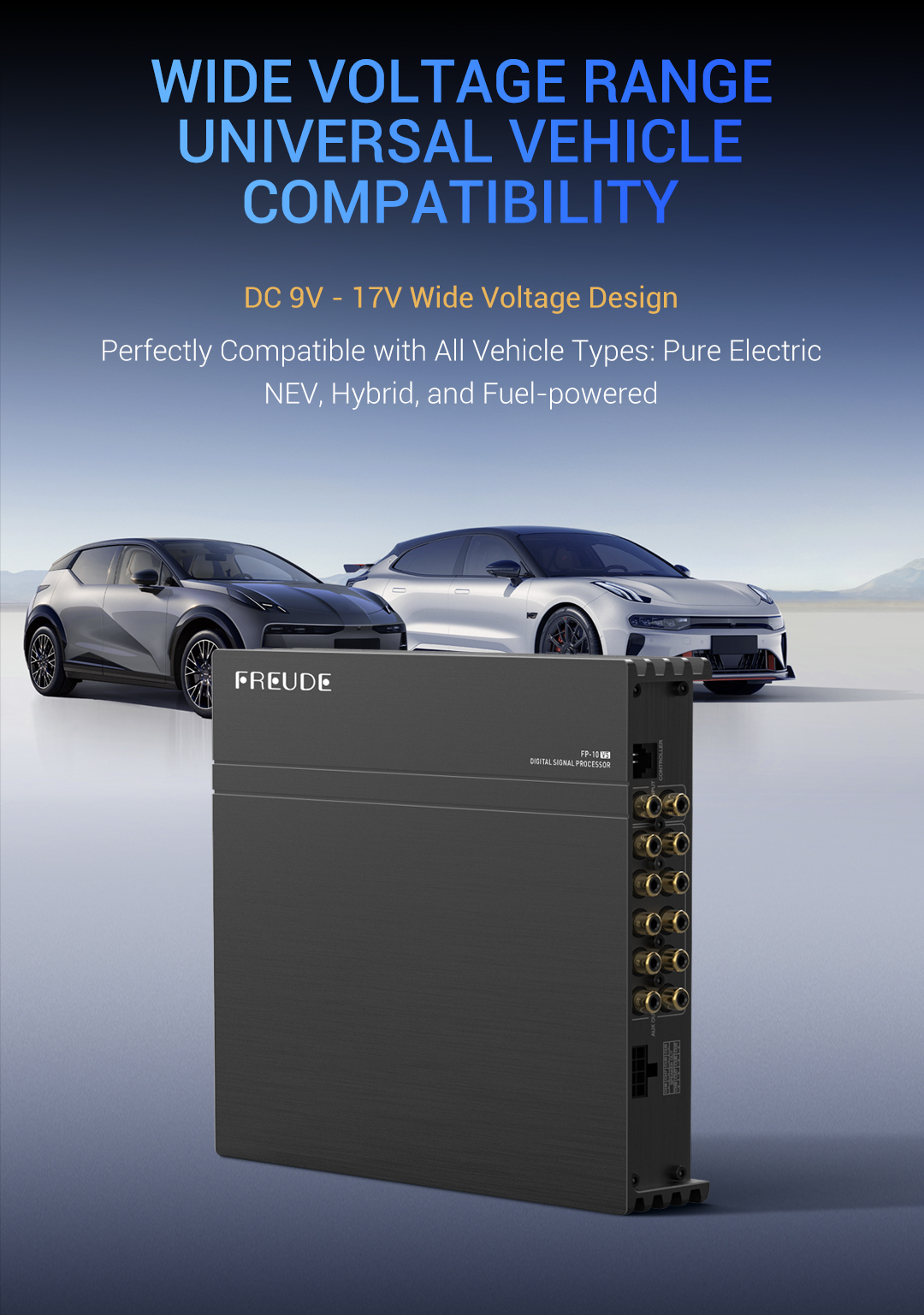

■ Wide voltage design: 9V – 17V DC

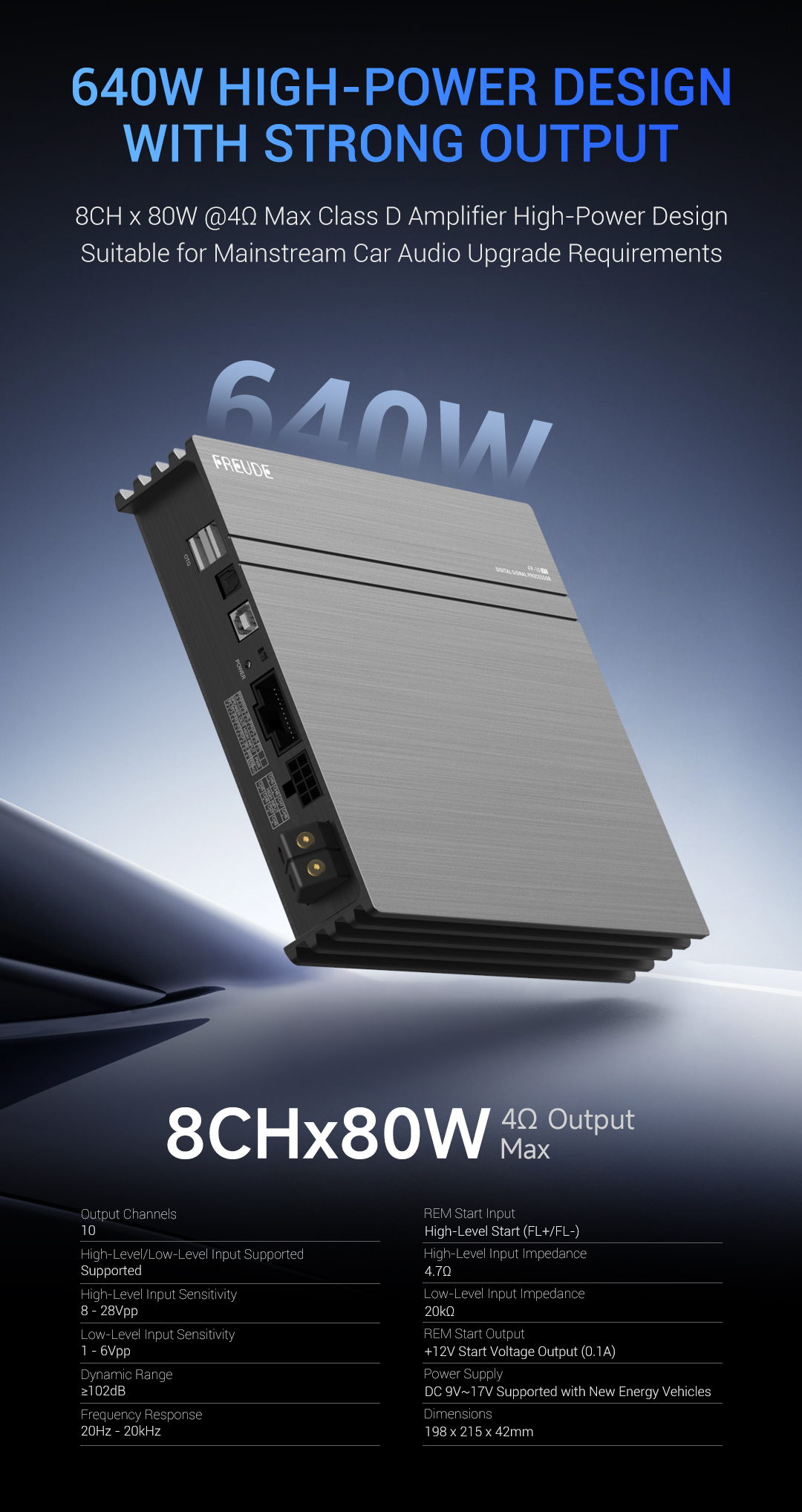

■ Built-in Class D amplifier: Max Power up to 8 × 80W

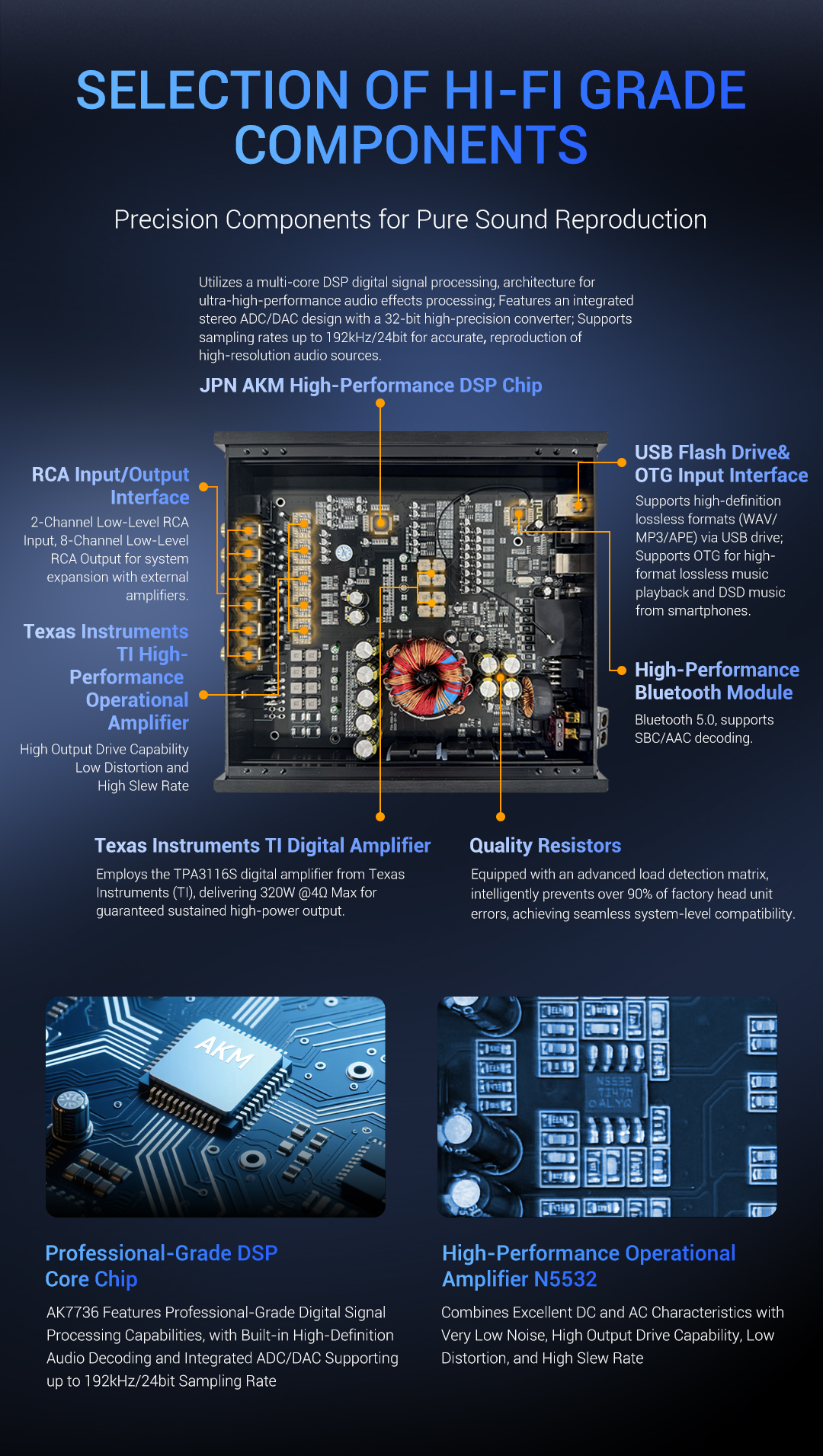

■ High-performance AKM DSP chip from Japan
■ Texas Instruments (TI) digital amplifier ensuring sustained high-power output

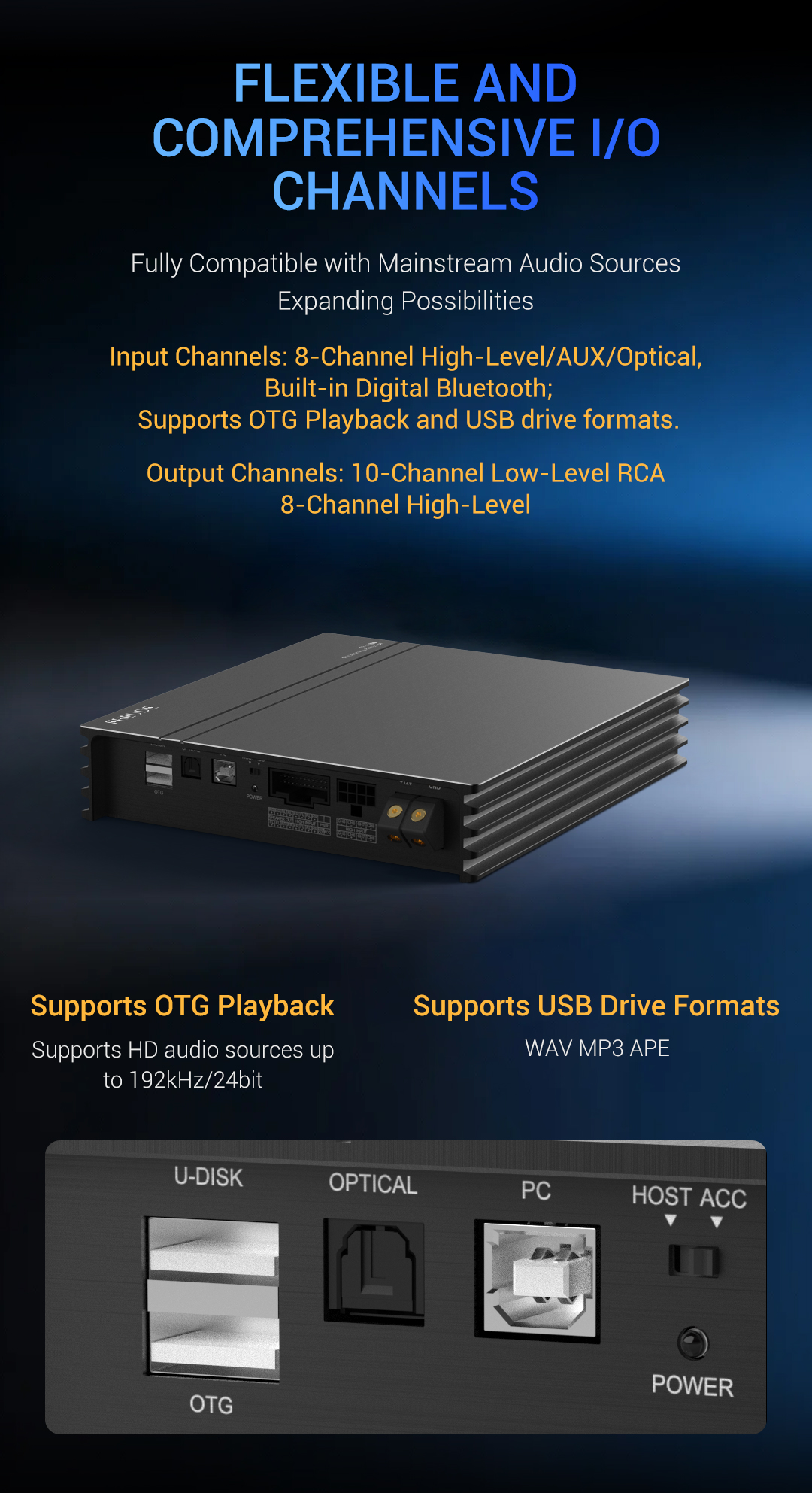

■ USB flash drive and OTG input interface: fully supports lossless audio formats via USB flash drive

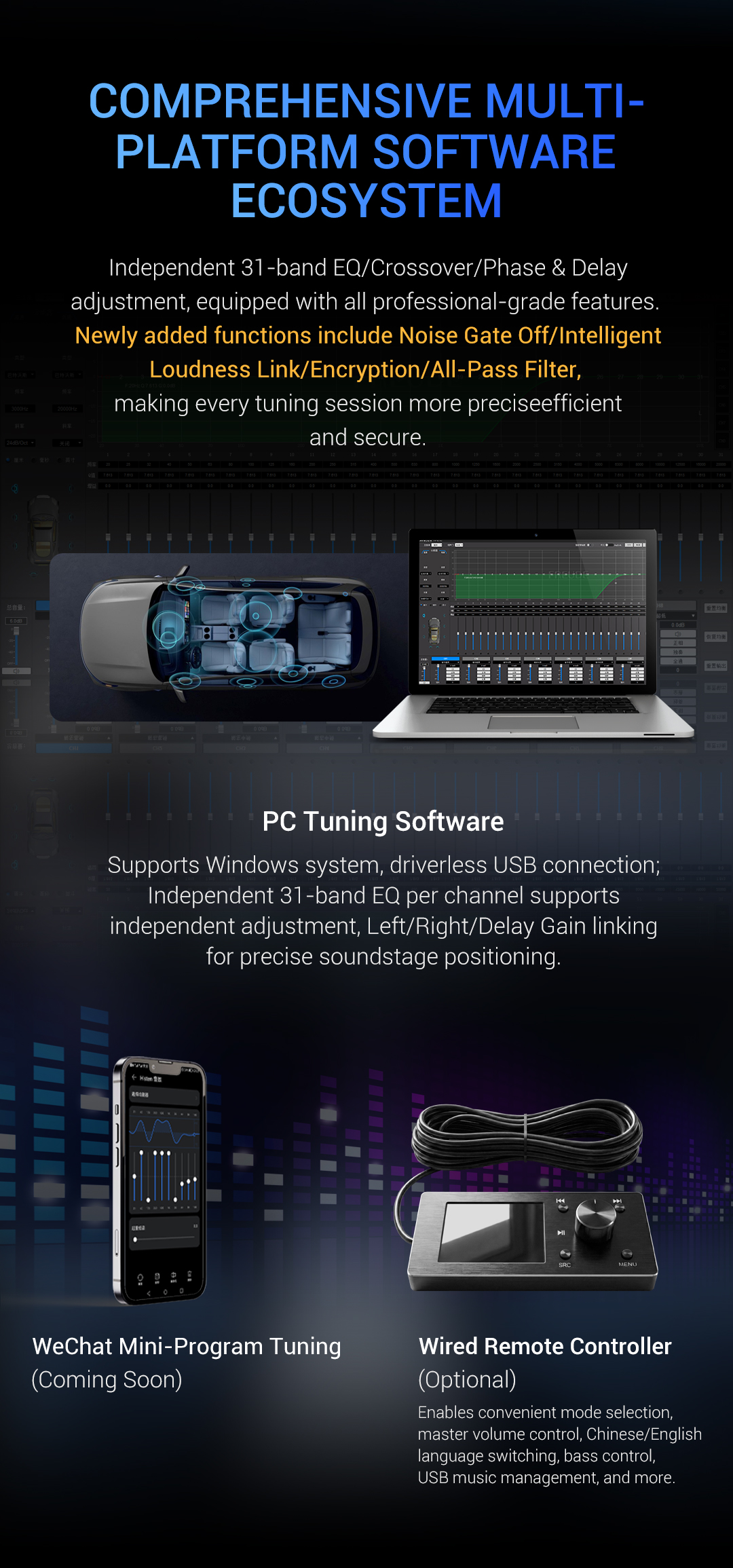

■ PC tuning -- AUDIO ARCHITECT
■ Plug-and-play, non‑destructive installation

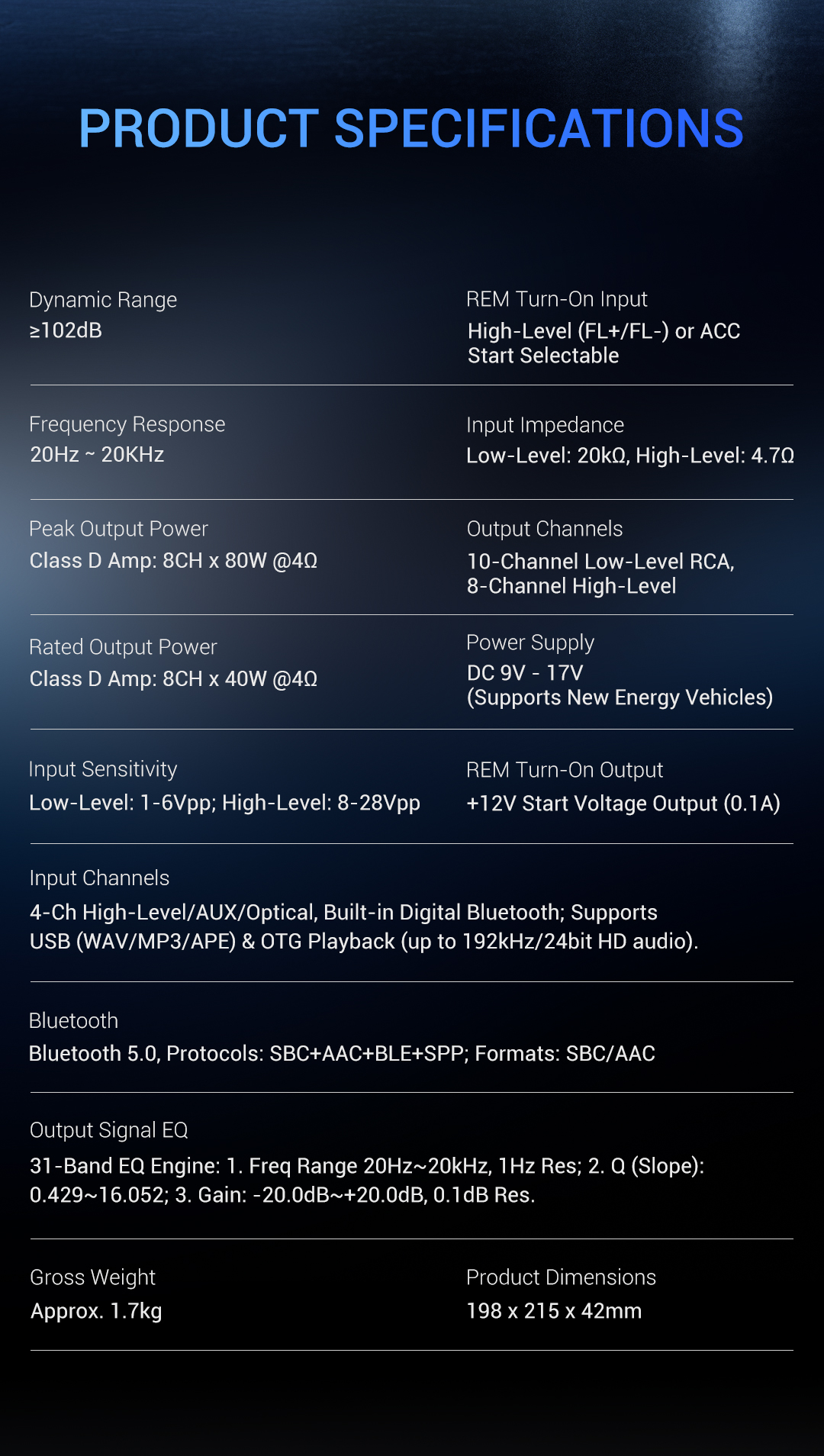

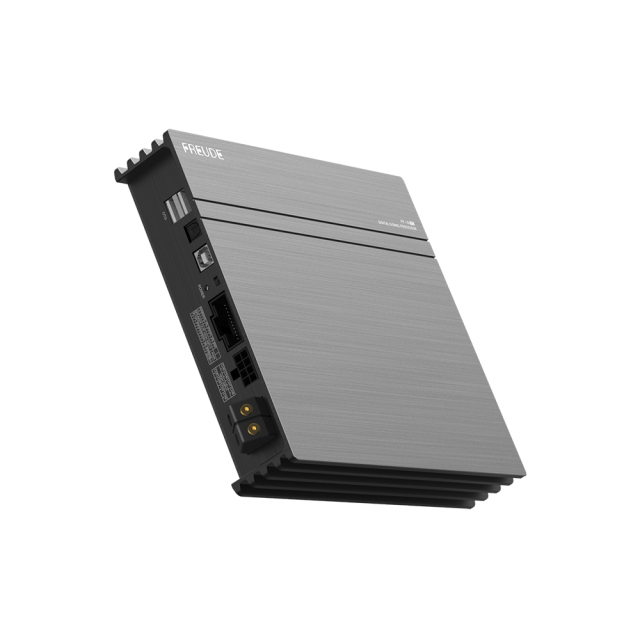

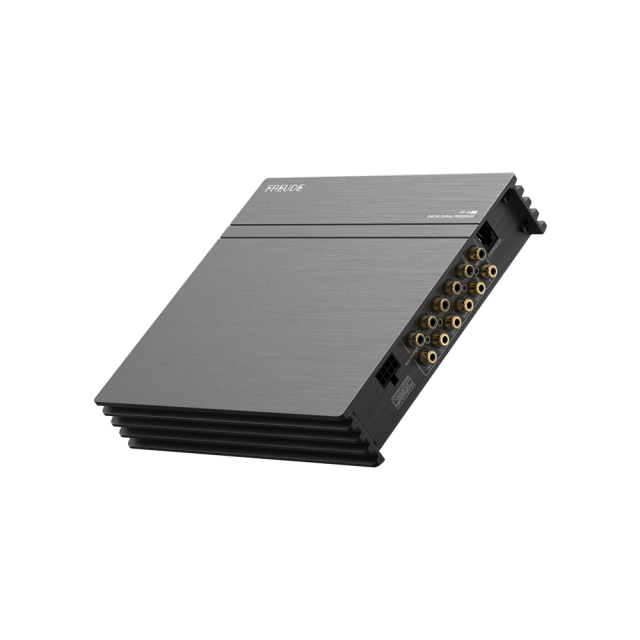

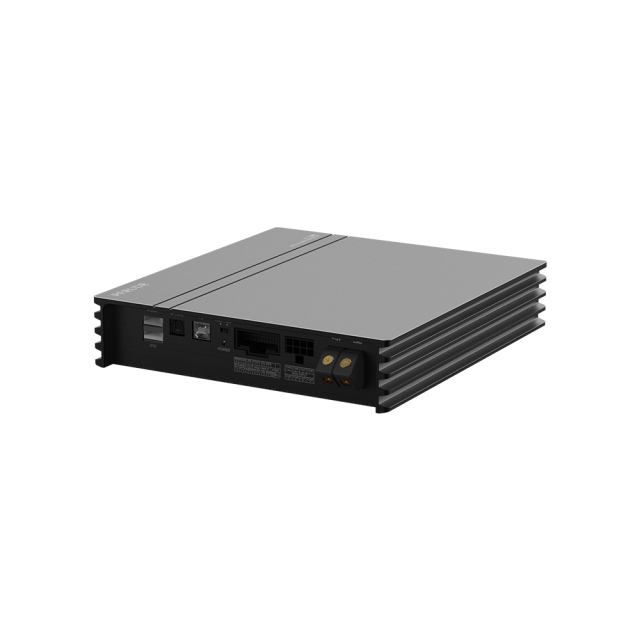

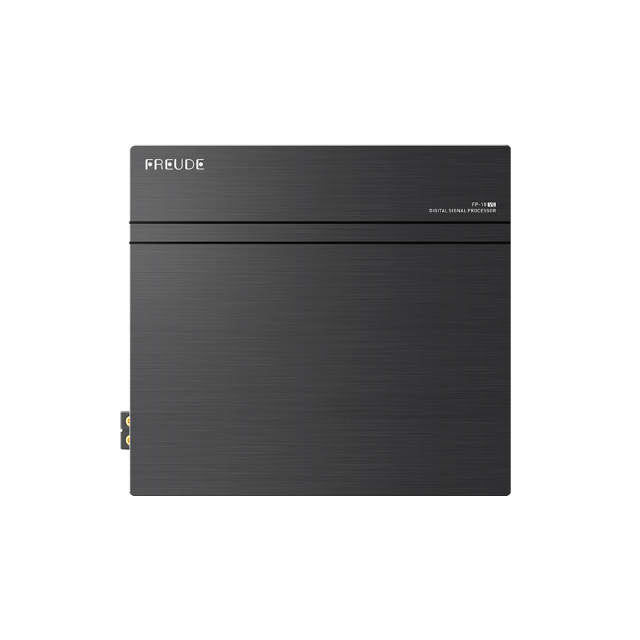

| Model: |
FP-10 V5 |
| Type: |
10 ch DSP with 8 ch Amplifier |
| Power: |
DC 9 V～17 V |

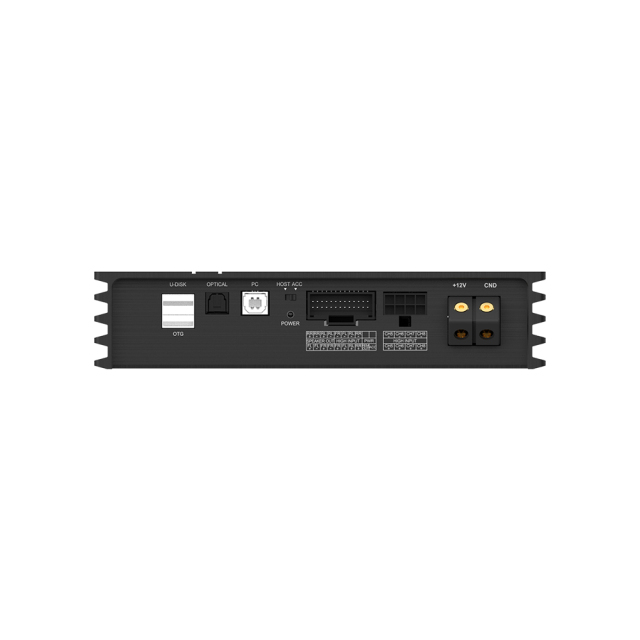

| Input Signal Type: |
10 ch high level, 2 ch Low Level, Optical Fibre, Digital BT, USB, OTG |

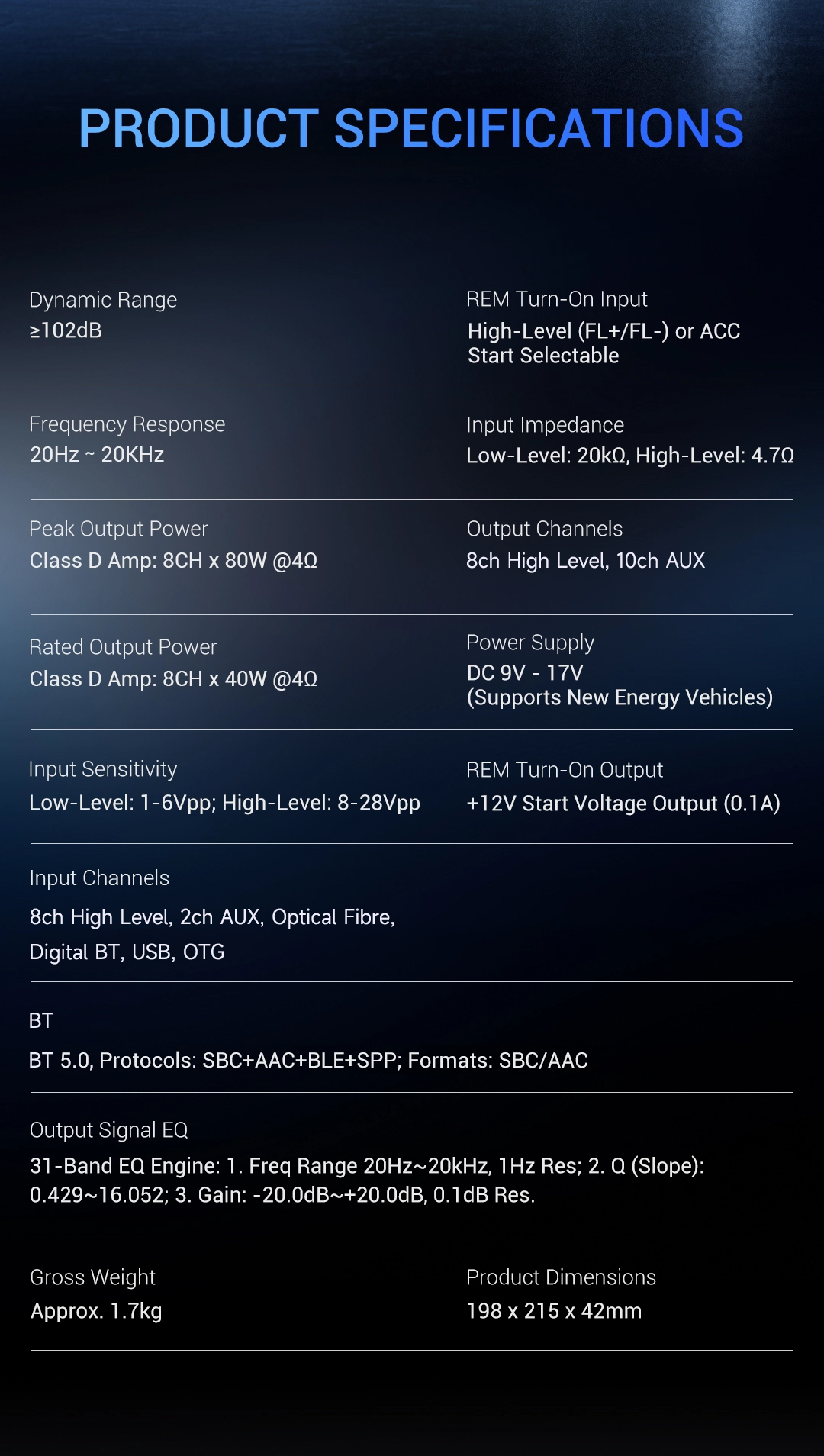

| Dynamic Range: |
≥102 dB |
| S/N: |
≥98 dB |
| Frequency Response: |
20 Hz ~ 20k Hz |
| Max Power: |
8 x 80 W |
| Nom Power: |
8 x 40 W |

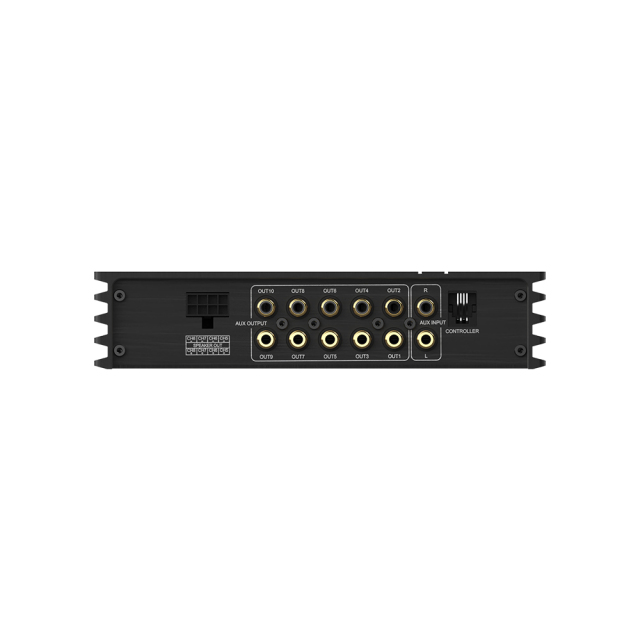

| Output Signal Type: |
10 ch Low Level Output, 8 ch High Level Output |
| Output Signal EQ: |
31 Levels EQ |
| Net Weight: |
1.7 kg |
| Dimension(LxWxH): |
198 x 215 x 42 mm |
