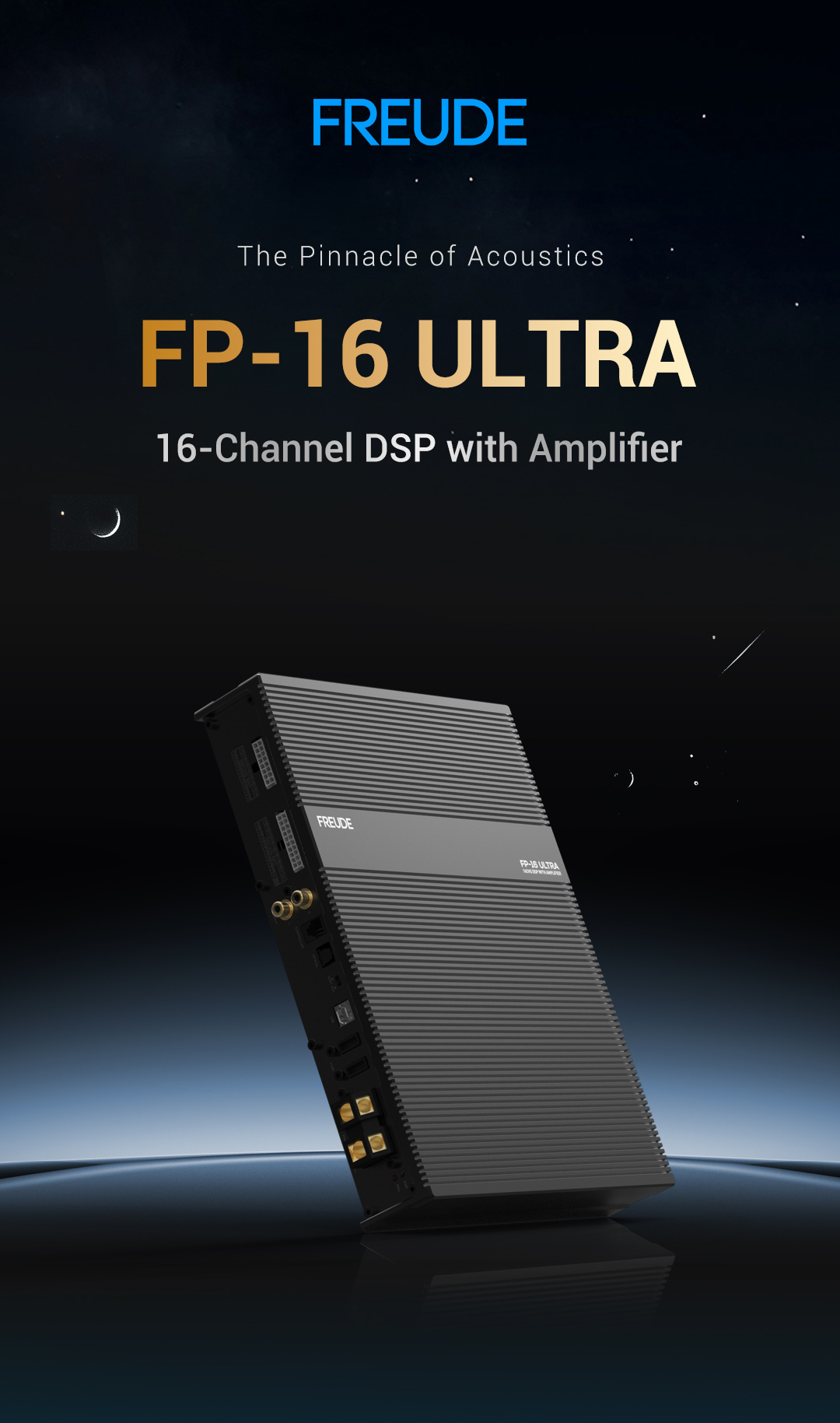

FP-16 Ultra

16ch DSP with Amplifier

■ 16-Channel Professional Performance DSP Amplifier
■ Class-AB+D high-power amplifier, 8x45W(CH1~8)+8x225W(CH9~16) @4Ω;
8x64W(CH1~8)+4x450W(CH9~16 PBTL) @2Ω Peak Output
■ Hi-End Decoding Chip with Ultra-High Computing Power

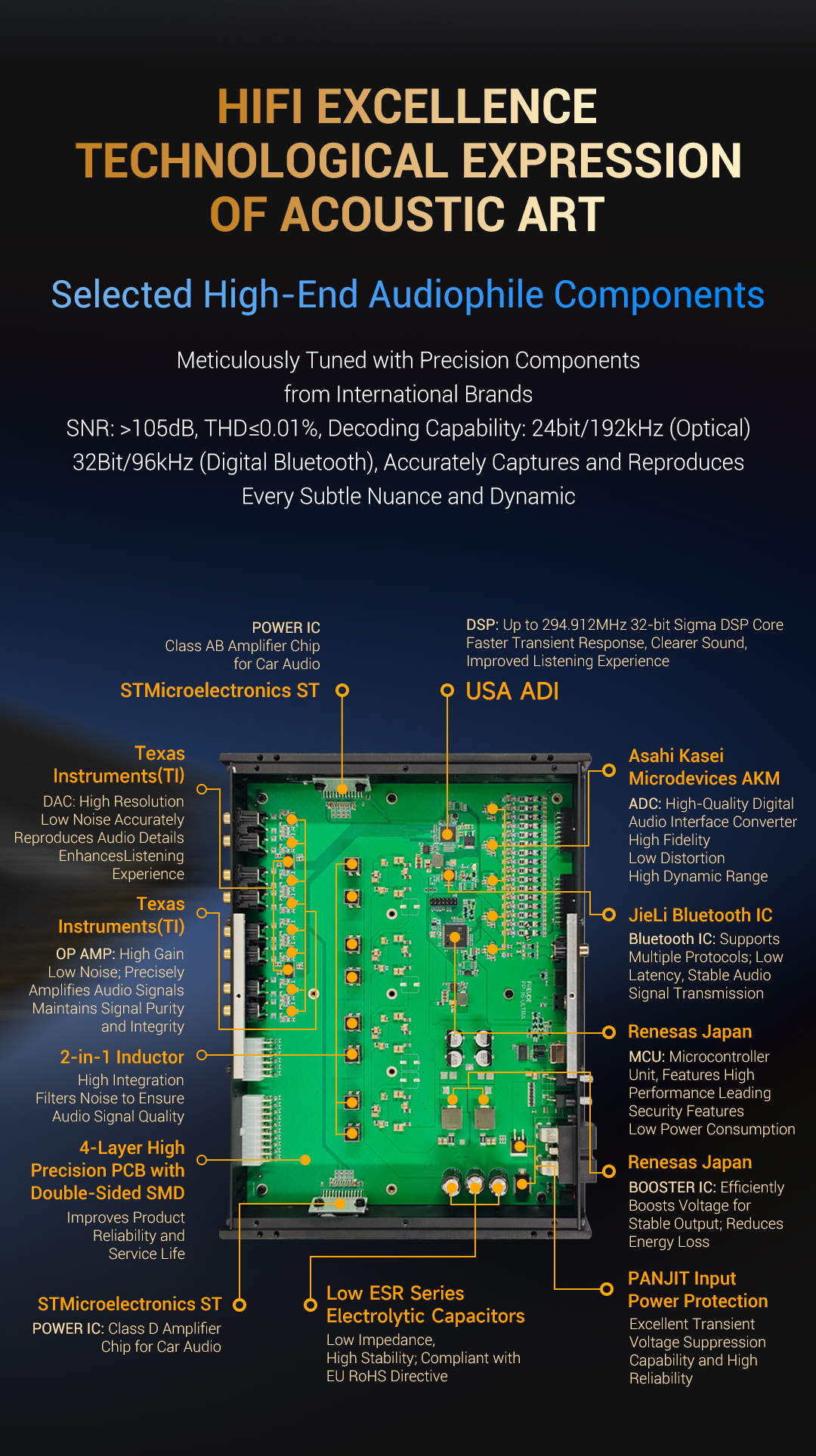

■ Equipped with AK5704 x 5pcs High-Performance ADC Professional Chip
■ Equipped with PCM1681 x 2pcs High-Performance Low-Distortion Audio DAC Decoding Chip
■ Ultra-High Dynamic Range, Supports High Resolution, Supports Multiple Sampling Rates

Description

■ 16-Channel Professional Performance DSP Amplifier
■ Class-AB+D high-power amplifier, 8x45W(CH1~8)+8x225W(CH9~16) @4Ω;
8x64W(CH1~8)+4x450W(CH9~16 Connect in pairs) @2Ω Peak Output
■ Hi-End Decoding Chip with Ultra-High Computing Power
■ Equipped with AK5704 x 5pcs High-Performance ADC Professional Chip
■ Equipped with PCM1681 x 2pcs High-Performance Low-Distortion Audio DAC Decoding Chip
■ Ultra-High Dynamic Range, Supports High Resolution, Supports Multiple Sampling Rates
*Product appearance and parameters have been on the market after the product shall prevail!

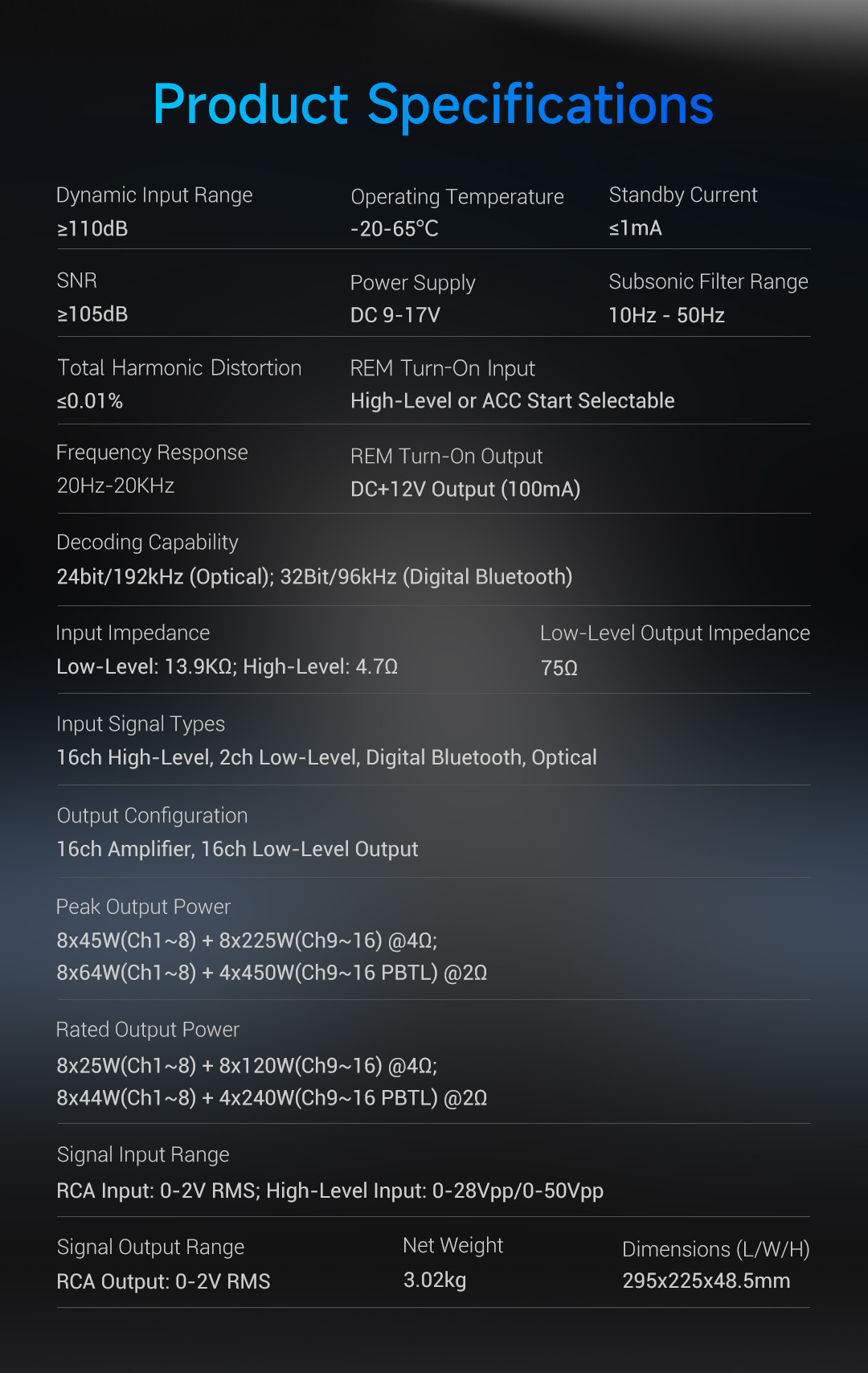

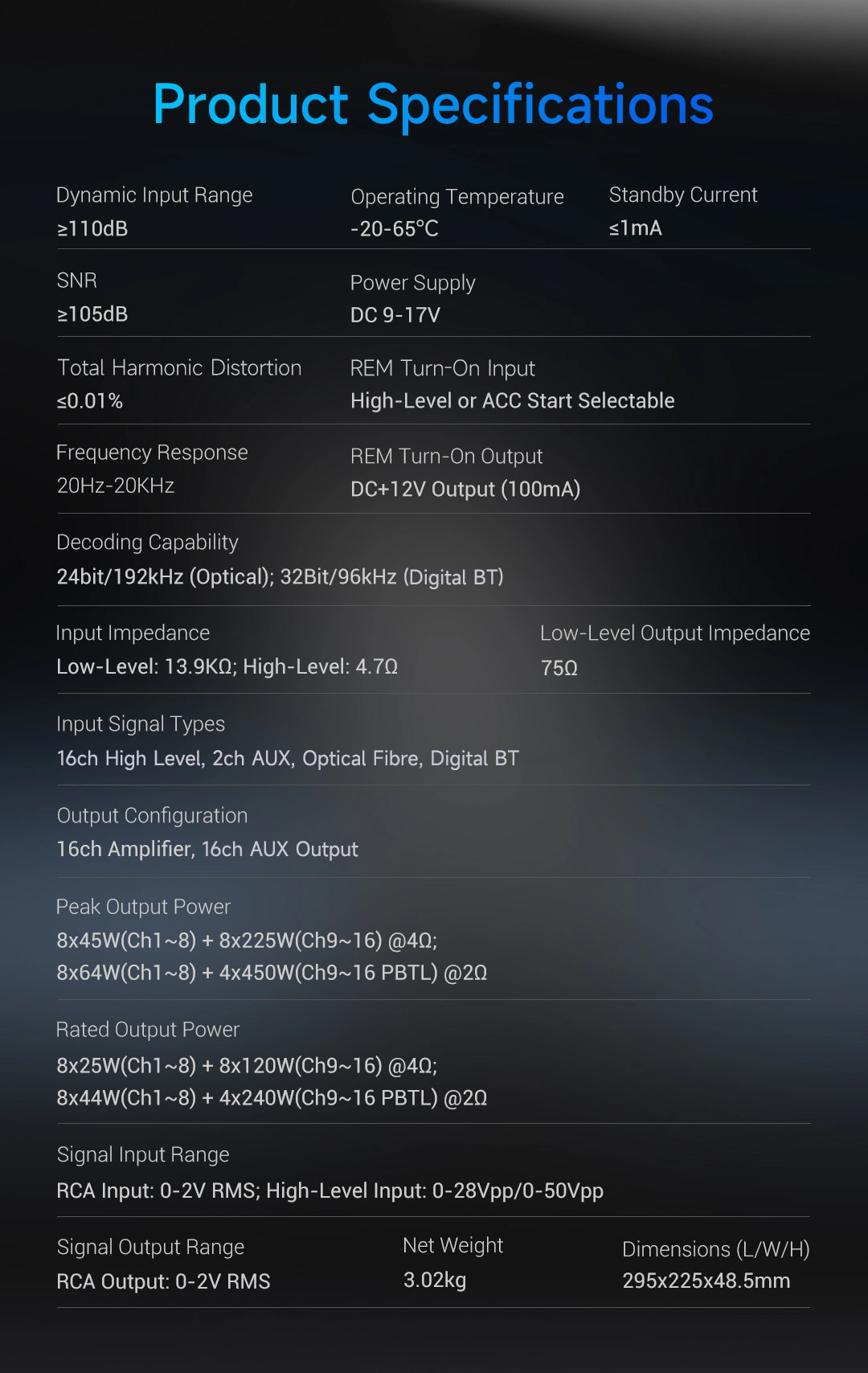

Model:	FP-16 Ultra
Type:	16 ch DSP with Amplifier

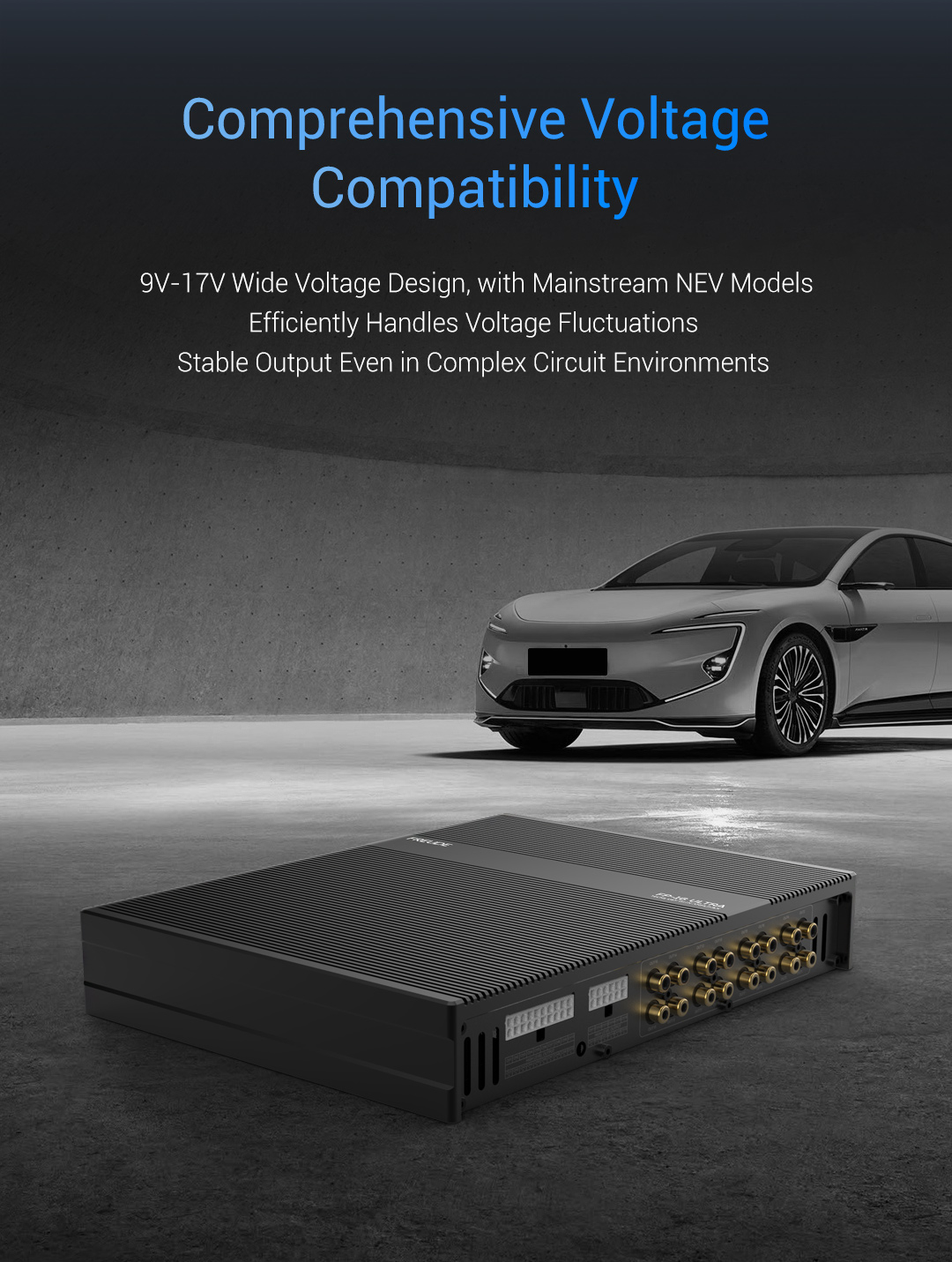

Power:	DC 9 V～17 V
Input Signal Type:	16 CH High Level, 2 CH Low Level, Optical Fibre, Digital BT
Dynamic Range:	≥110dB
S/N:	≥105dB
T.H.D.:	≤0.01%
Frequency Response:	20Hz ~ 20kHz
Decoding Capability:	24Bit/192kHz(Optical Fibre); 32Bit/96kHz(Digital BT)

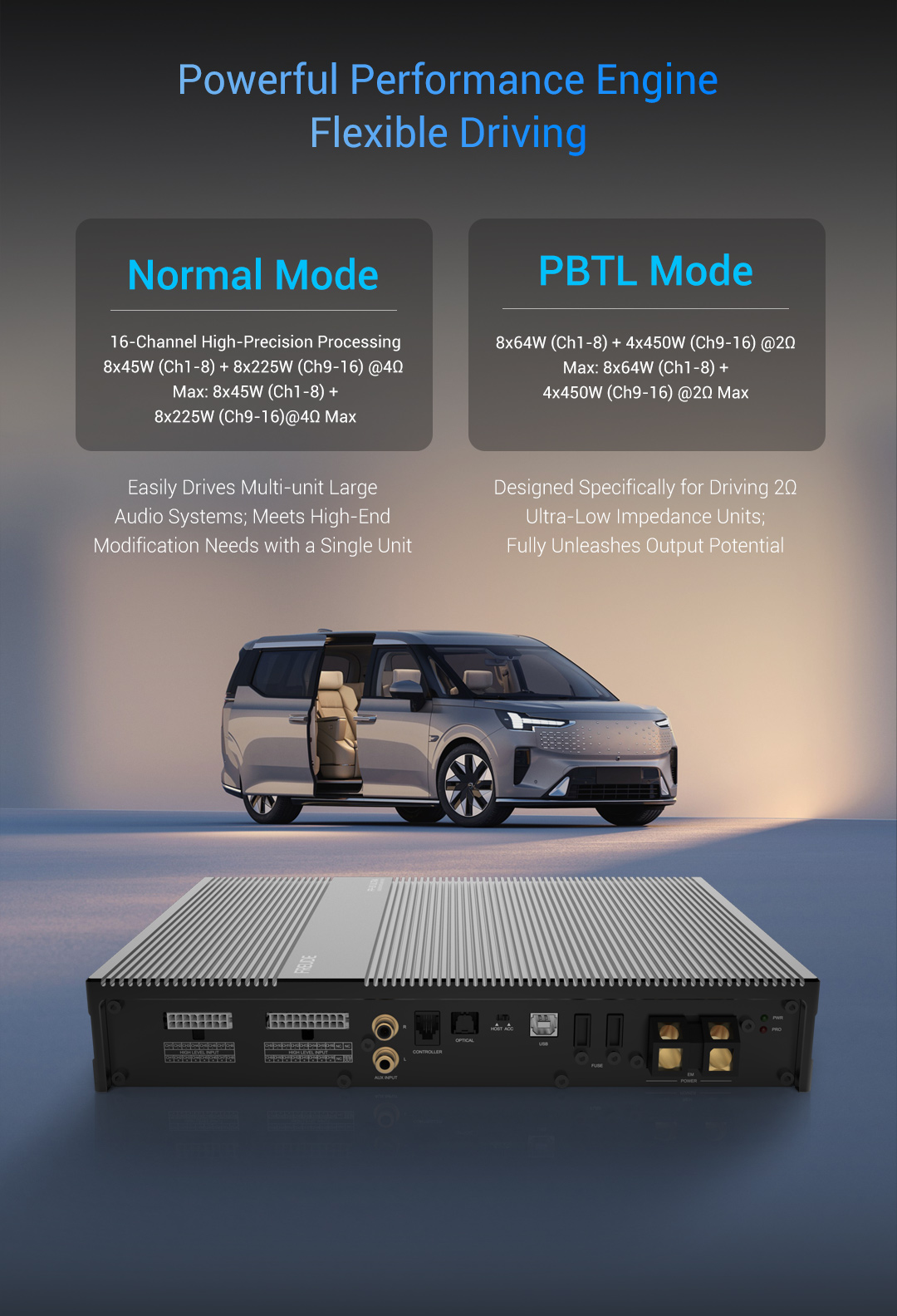

Max Power:	8x45W(CH1~8)+8x225W(CH9~16) @4Ω 8x64W(CH1~8)+4x450W(CH9~16 PBTL) @2Ω
Nom Power:	8x25W(CH1~8)+8x120W(CH9~16) @4Ω 8x44W(CH1~8)+4x240W(CH9~16 PBTL) @2Ω
Output Signal Type:	16 ch Low Level Output, 16 ch High Level Output
Output Signal EQ:	31 Levels EQ
Net Weight:	3.1 kg

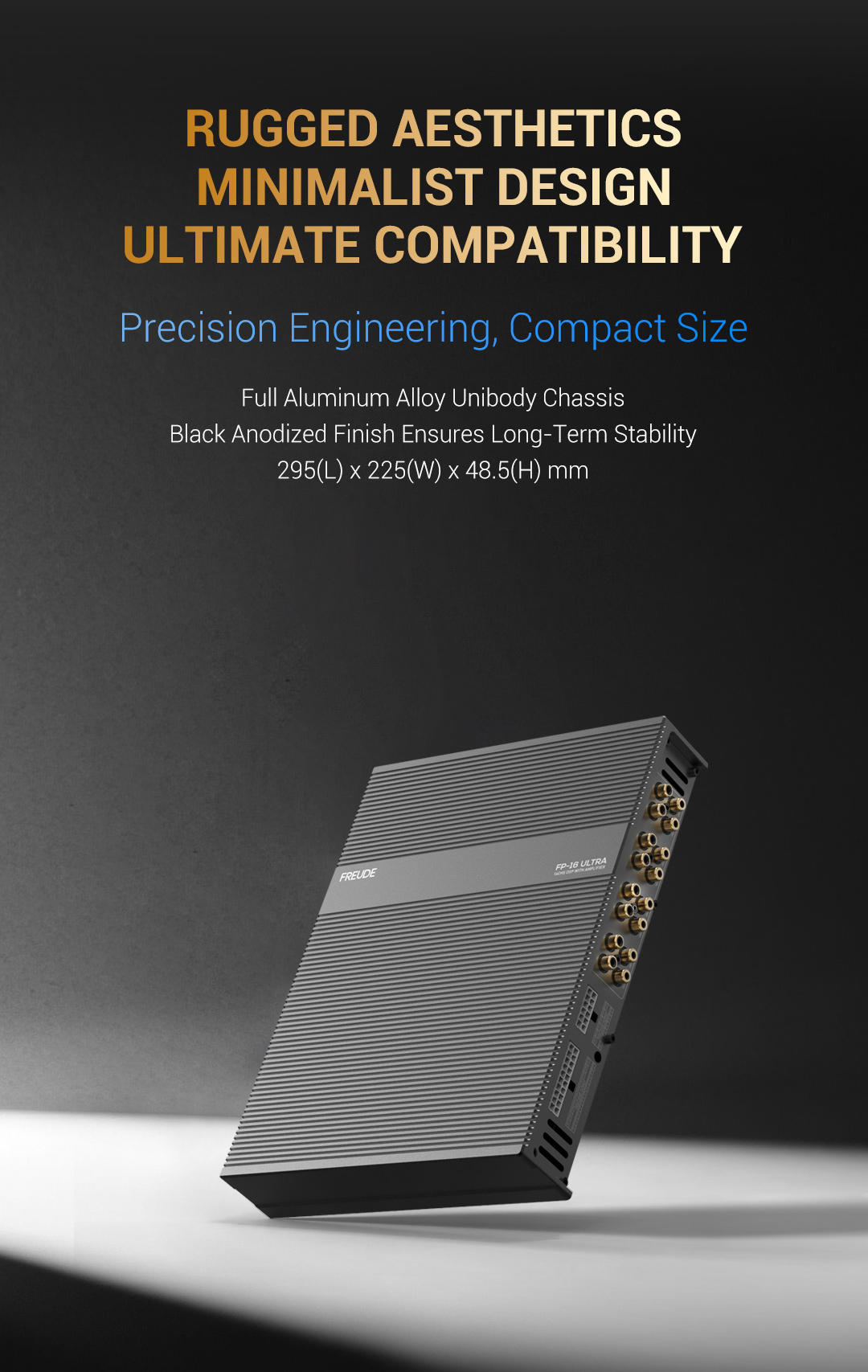

Dimension(LxWxH;mm):	295 x 225 x 48.5 mm
