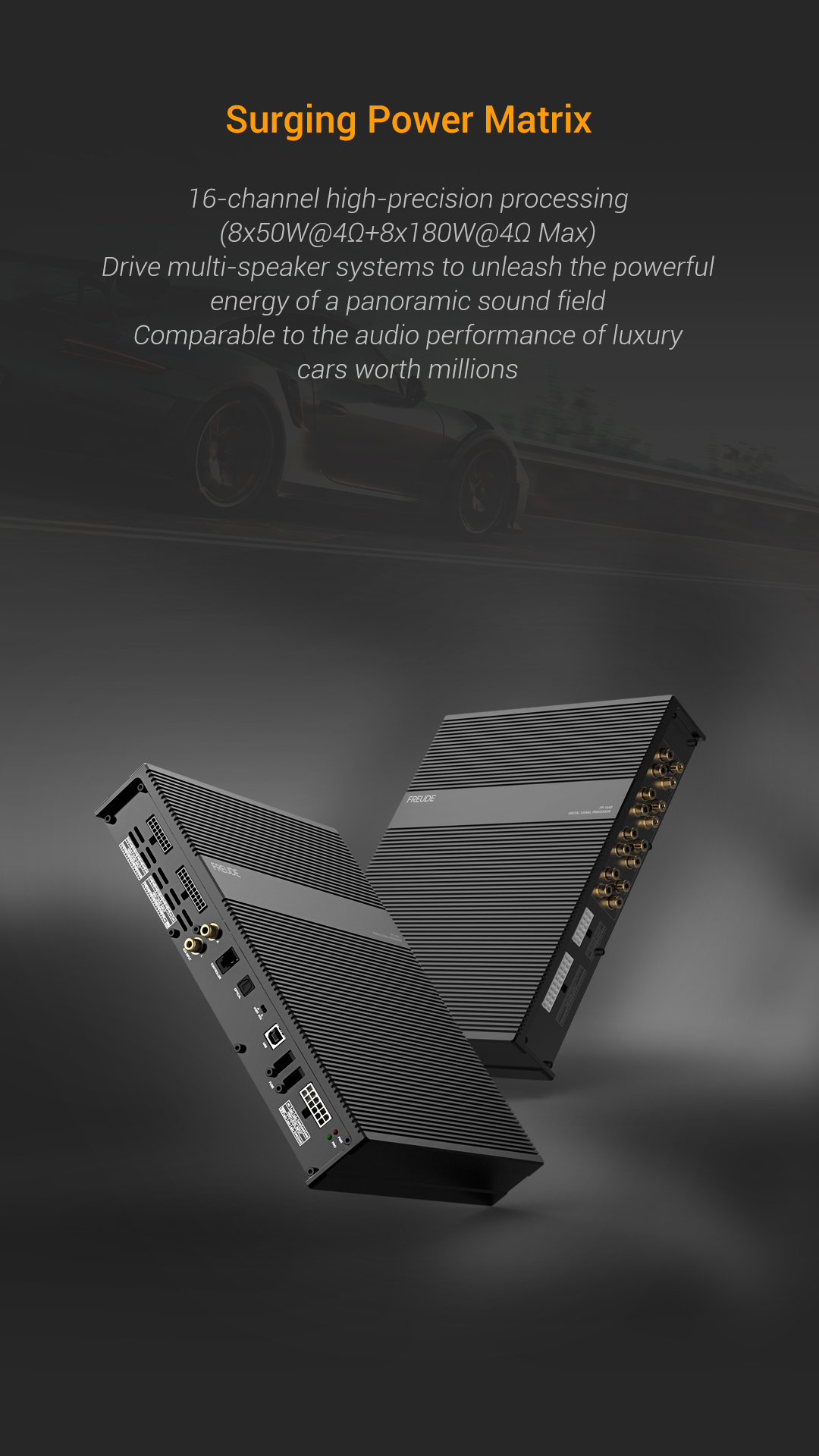

■ 16-in/16-out High-Power DSP with peak output of 8x50W (Channels 1-8) + 8x180W (Channels 9-16)

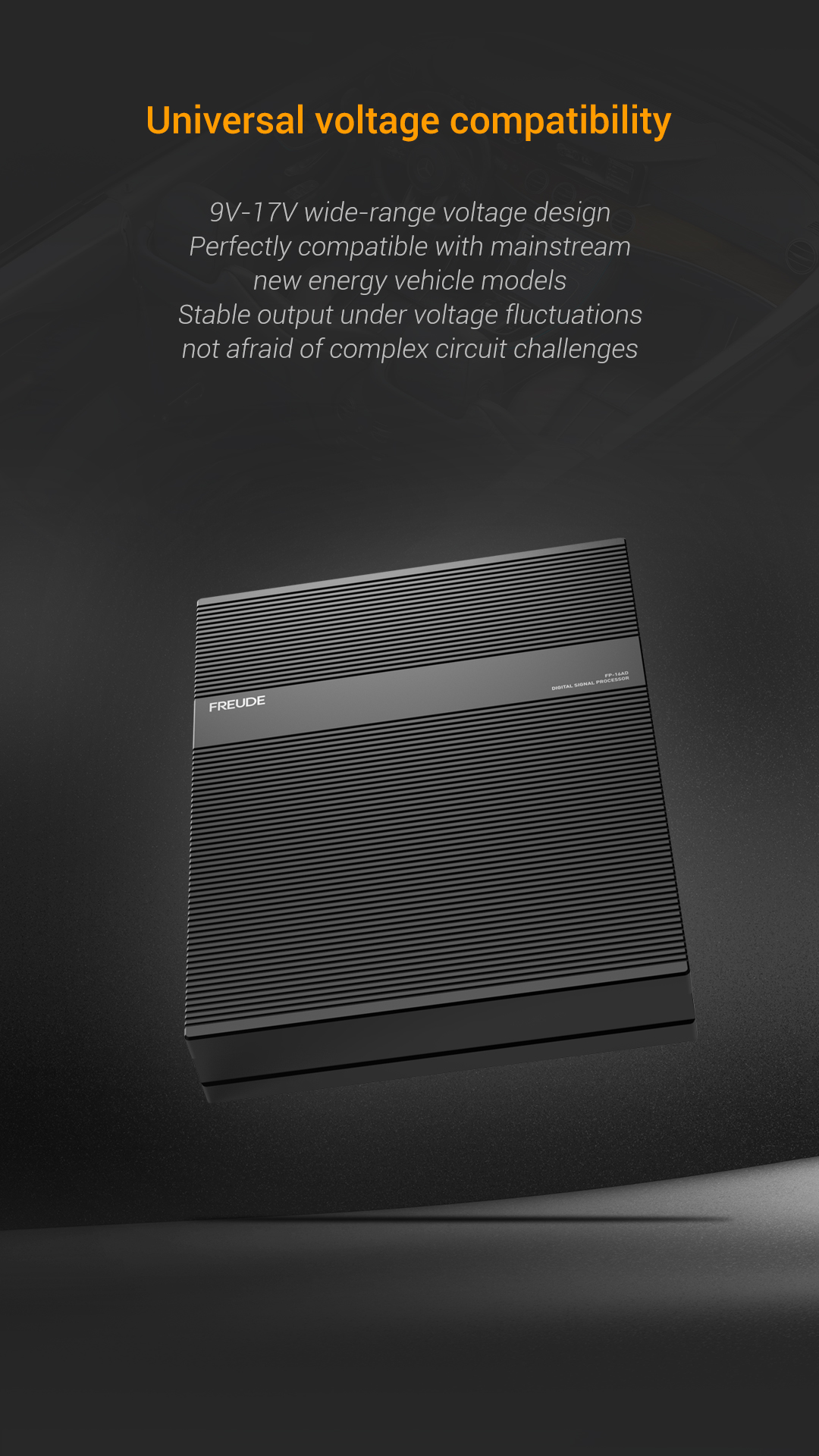

■ 9V-16V wide voltage compatibility ensures stable operation in new energy vehicles, maintaining audio quality despite voltage fluctuations

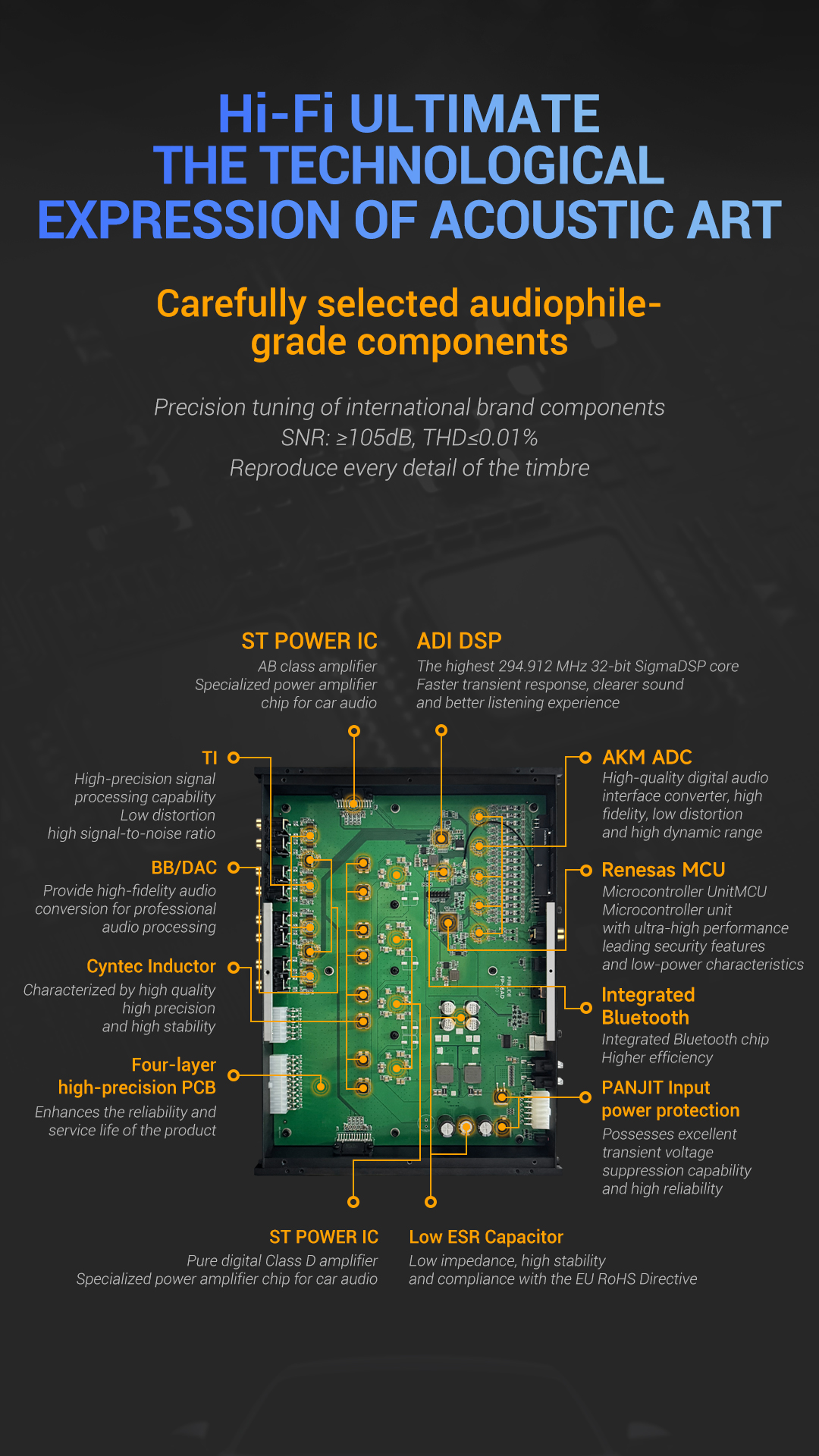

■ Premium audiophile-grade components deliver authentic sound reproduction with exceptional detail resolution

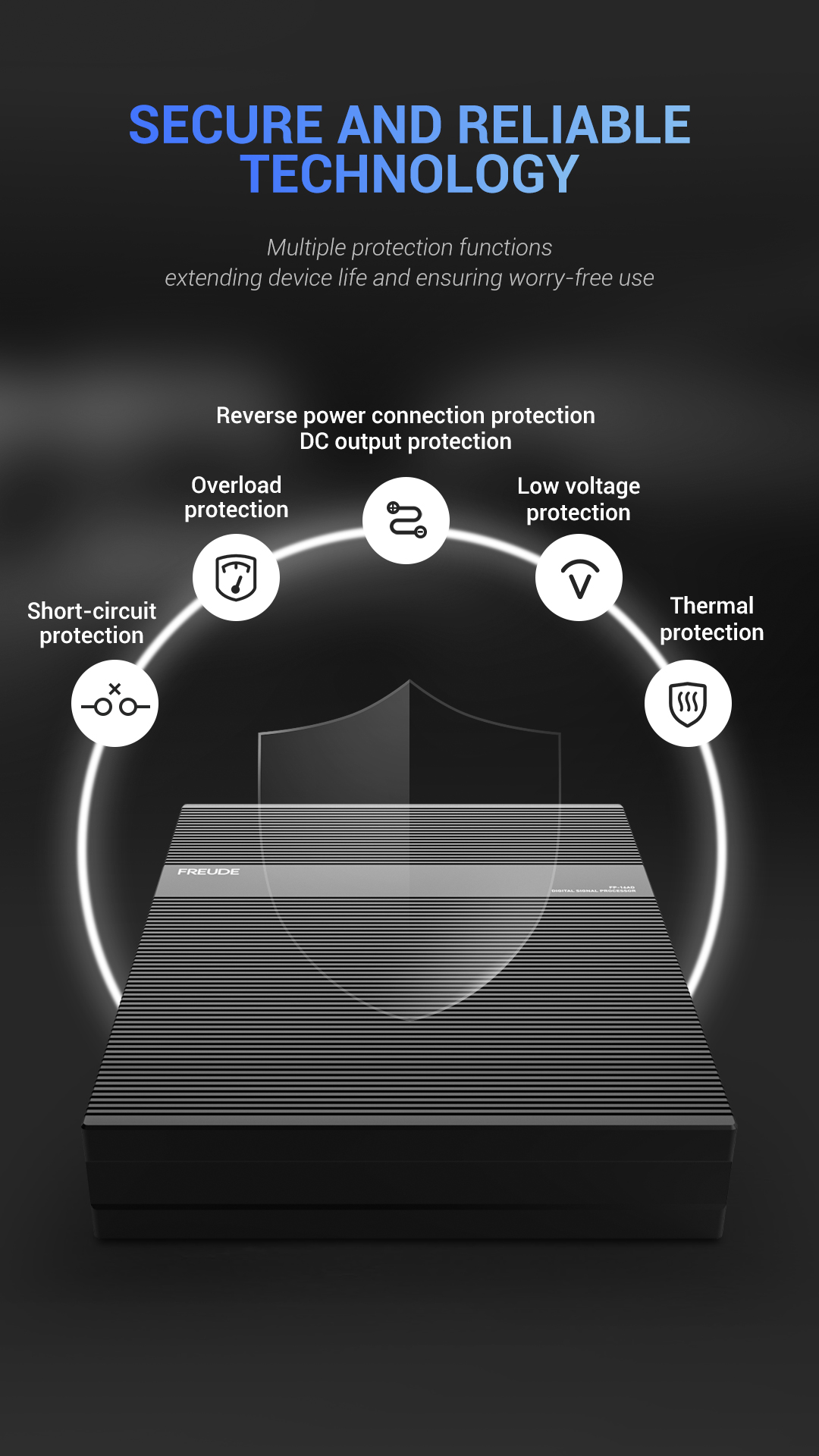

■ Advanced protection systems safeguard equipment longevity through multiple protection mechanisms

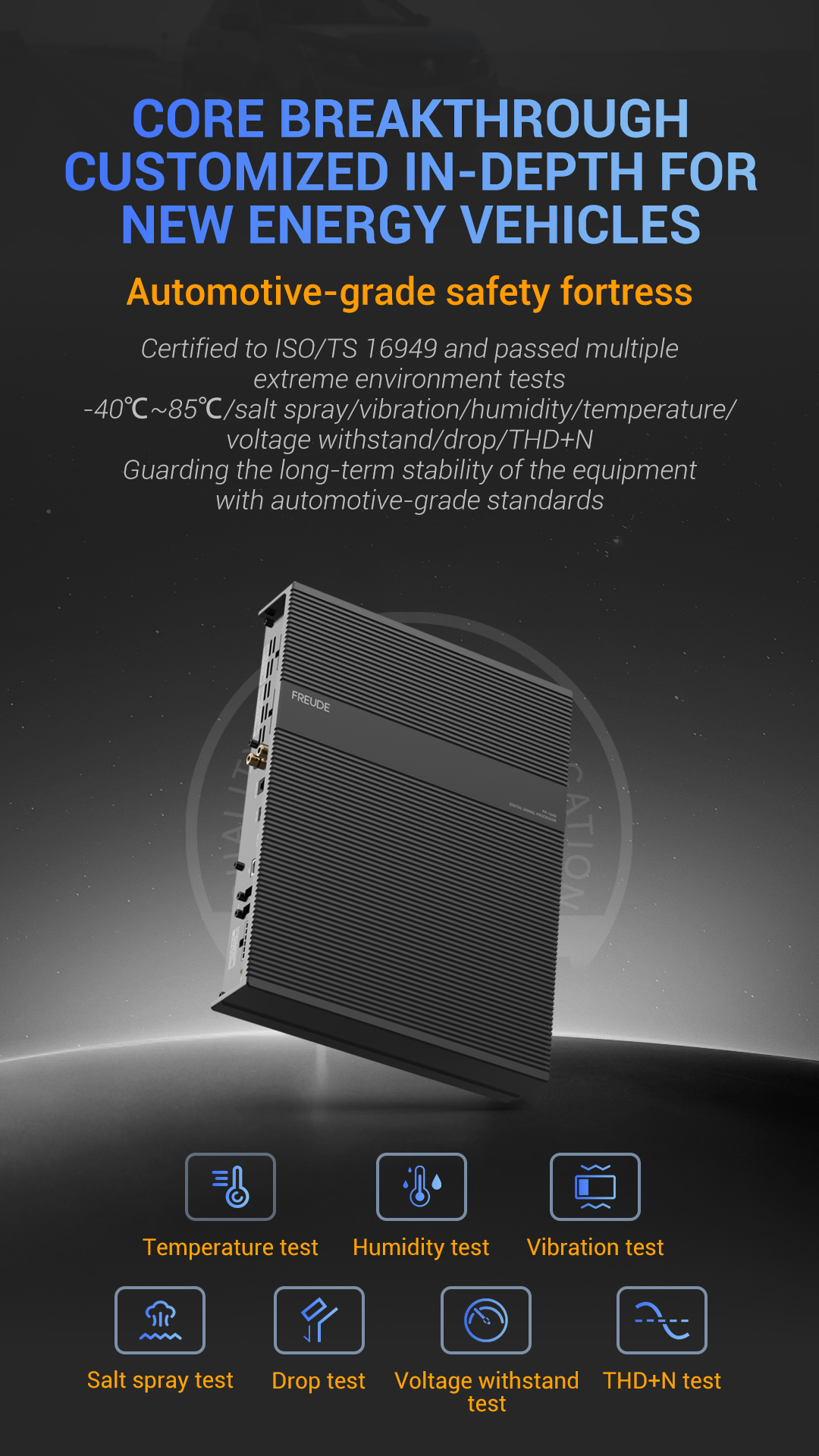

■ Automotive-grade engineering ensures reliability, consistency and safety in extreme environmental conditions

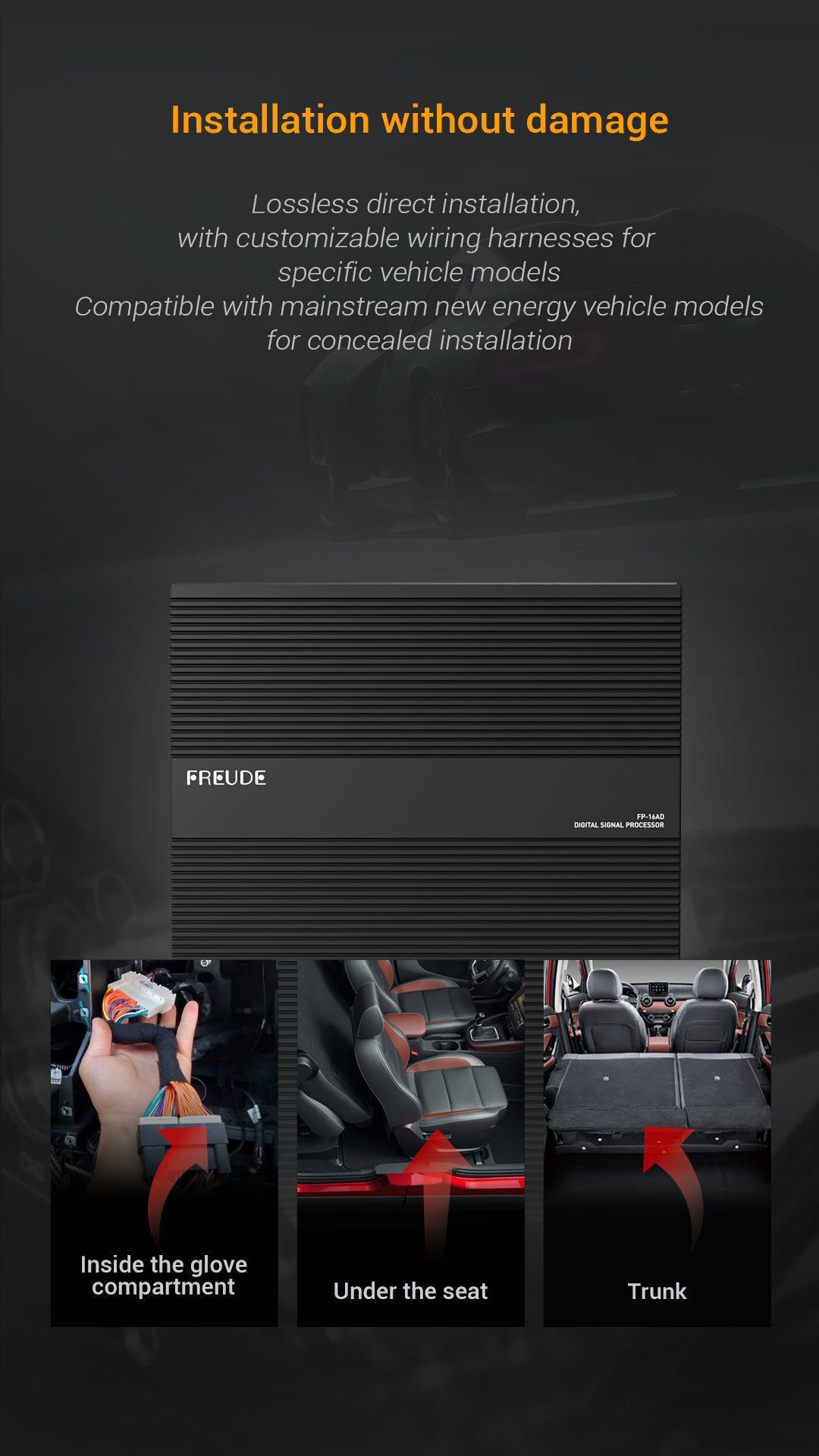

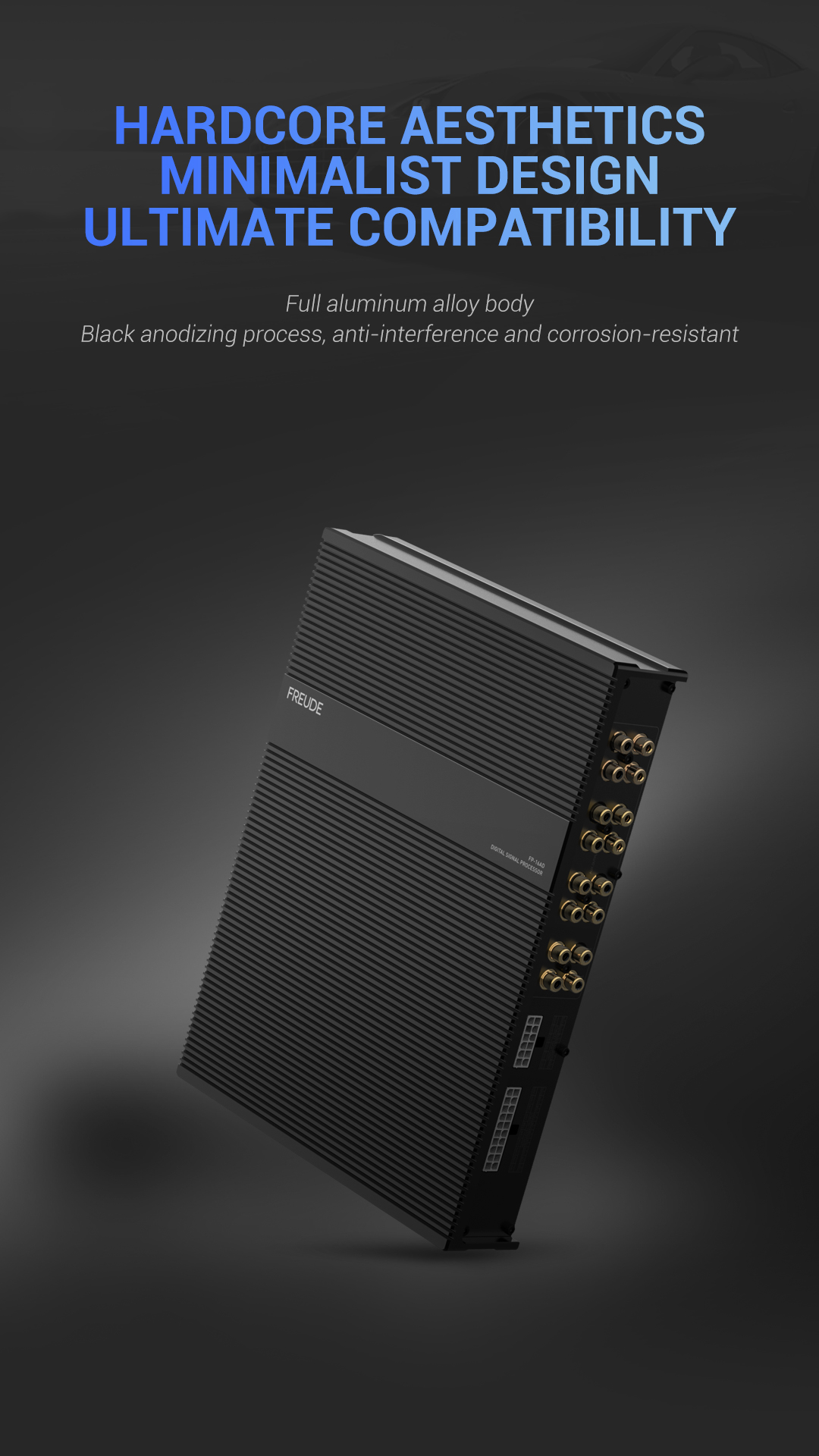

■ Compact aluminum alloy chassis with black sandblasted anodized finish enables flexible installation

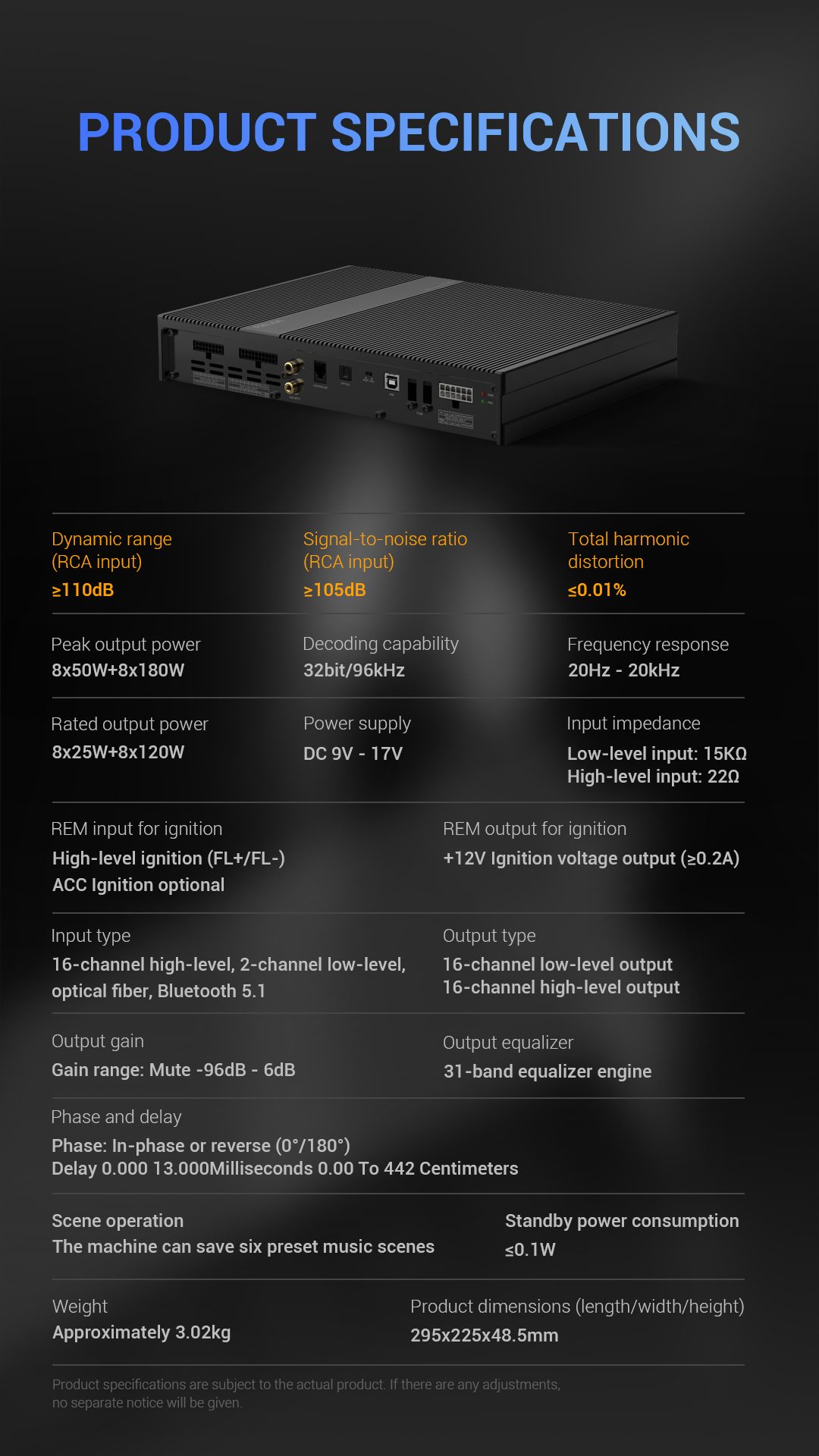

| Model |
FP-16AD |
| Type |
16 ch DSP with Amplifier |
| Power |
DC 9 V~16 V |
| Input Signal Type |
16 ch high level, 2 ch Low Level, Optical Fibre, Digital BT |
| Dynamic Range |
≥110dB |
| S/N |
≥105dB |
| T.H.D. |
≤0.01% |
| Freq. Response |
20 Hz ~ 20k Hz |
| Decoding Capability |
32 bit / 96k Hz |
| Max Power |
8x50W(CH1~CH8)+8x180W(CH9~CH16) |
| Nom Power |
8x25W(CH1~CH8)+8x120W(CH9~CH16) |
| Output Signal Type |
16 ch Low Level, 16 ch High Level |
| Output Signal EQ |
31 Levels EQ |
| Presets |
Save 6 presets into the device |
| Net Weight |
3.02 kg |
| Dimension(LxWxH) |
295 x 225 x 48.5 mm |
