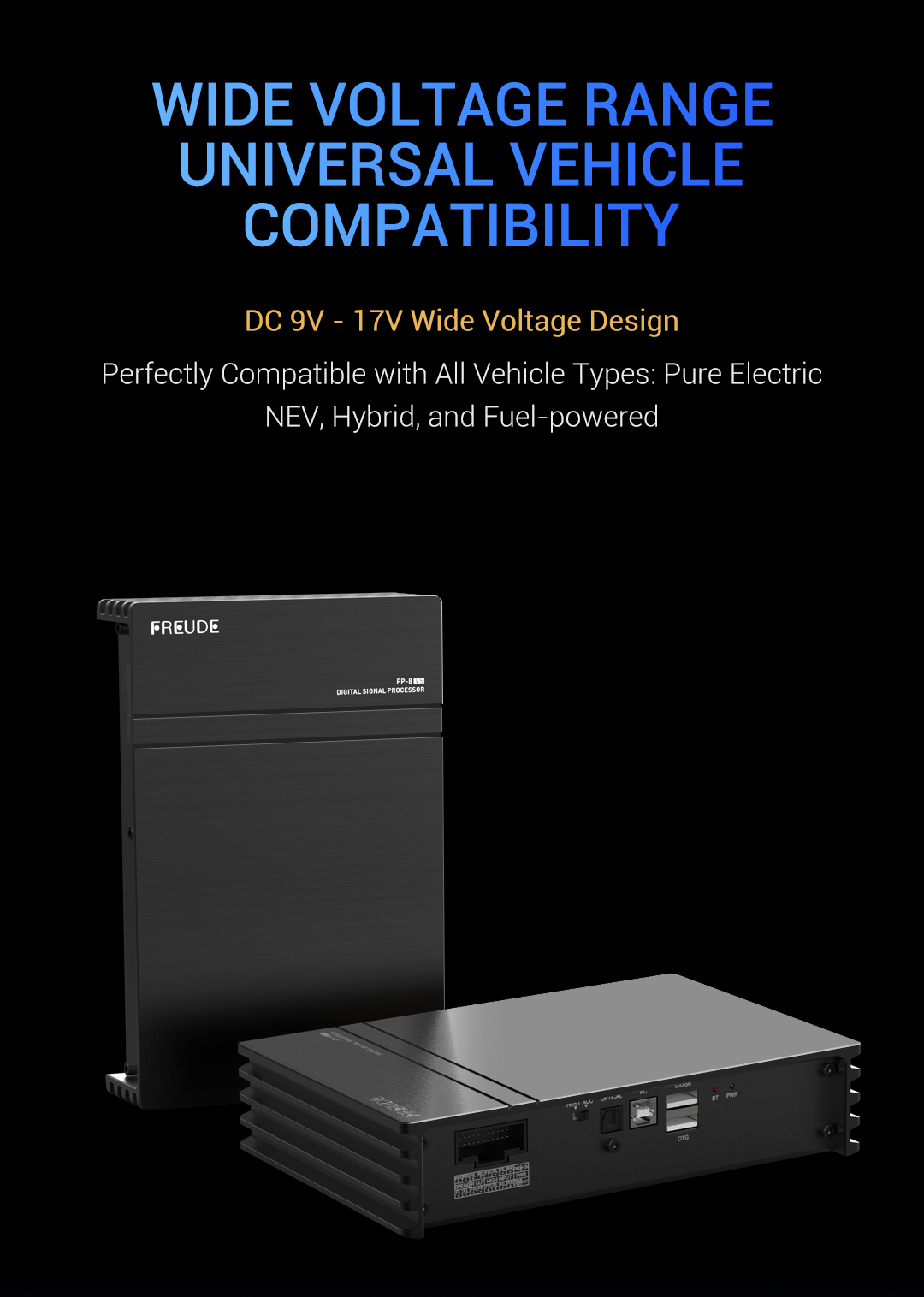

■ Wide voltage design: 9V – 17V DC

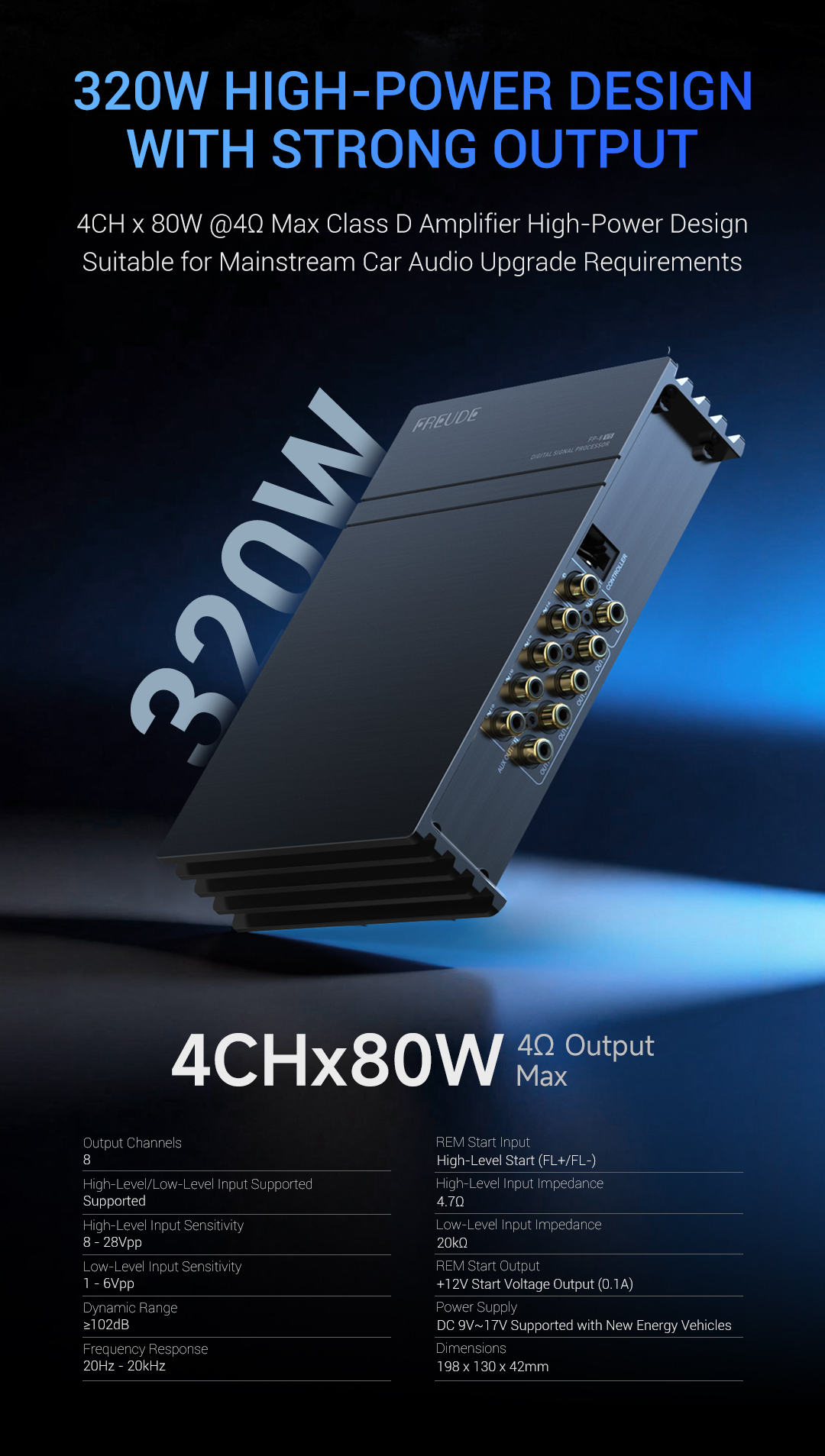

■ Built-in Class D amplifier: Max Power up to 4 × 80W

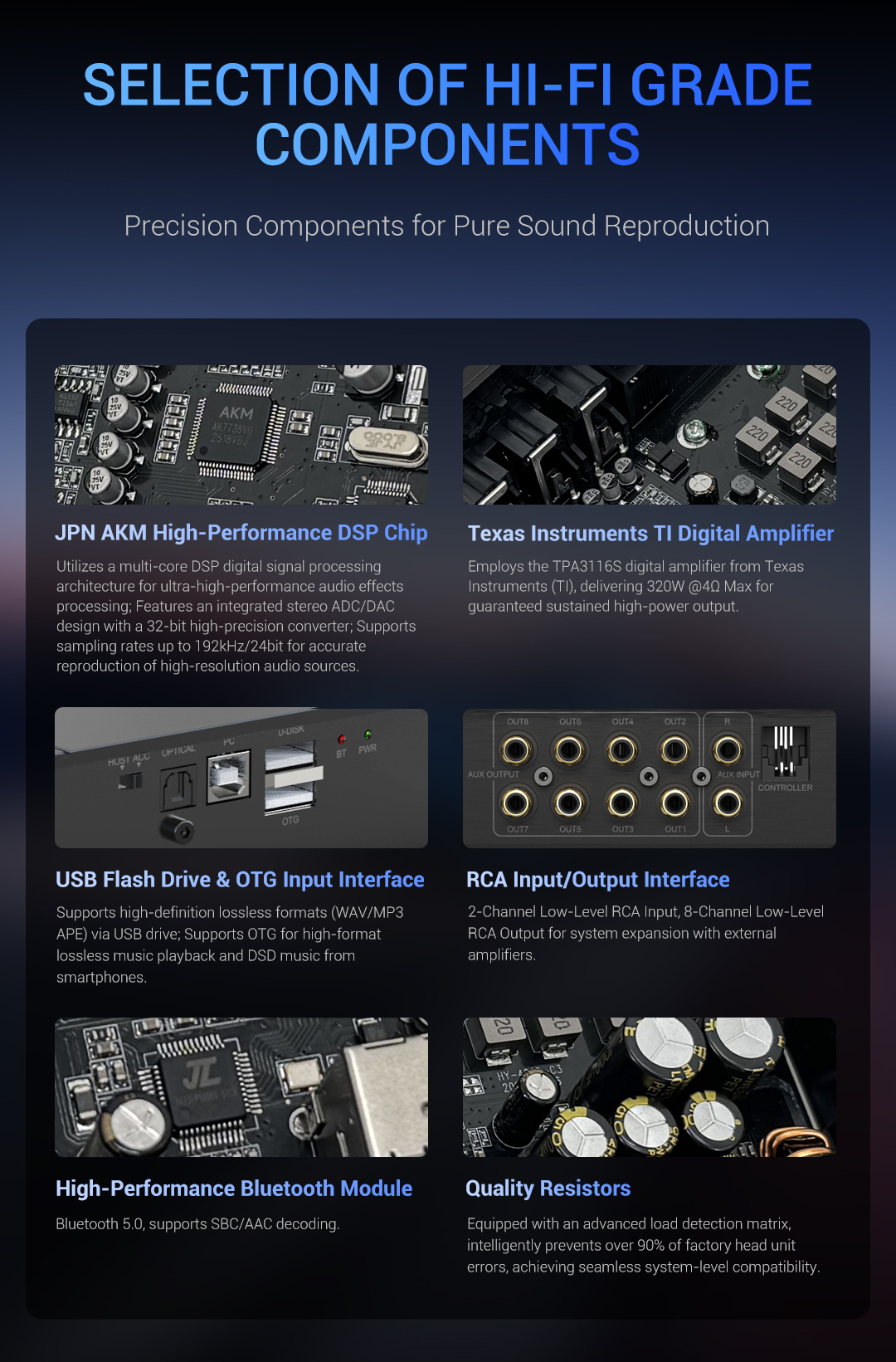

■ High-performance AKM DSP chip from Japan
■ Texas Instruments (TI) digital amplifier ensuring sustained high-power output
■ USB flash drive and OTG input interface: fully supports lossless audio formats via USB flash drive
■ PC tuning -- AUDIO ARCHITECT
■ Plug-and-play, non‑destructive installation

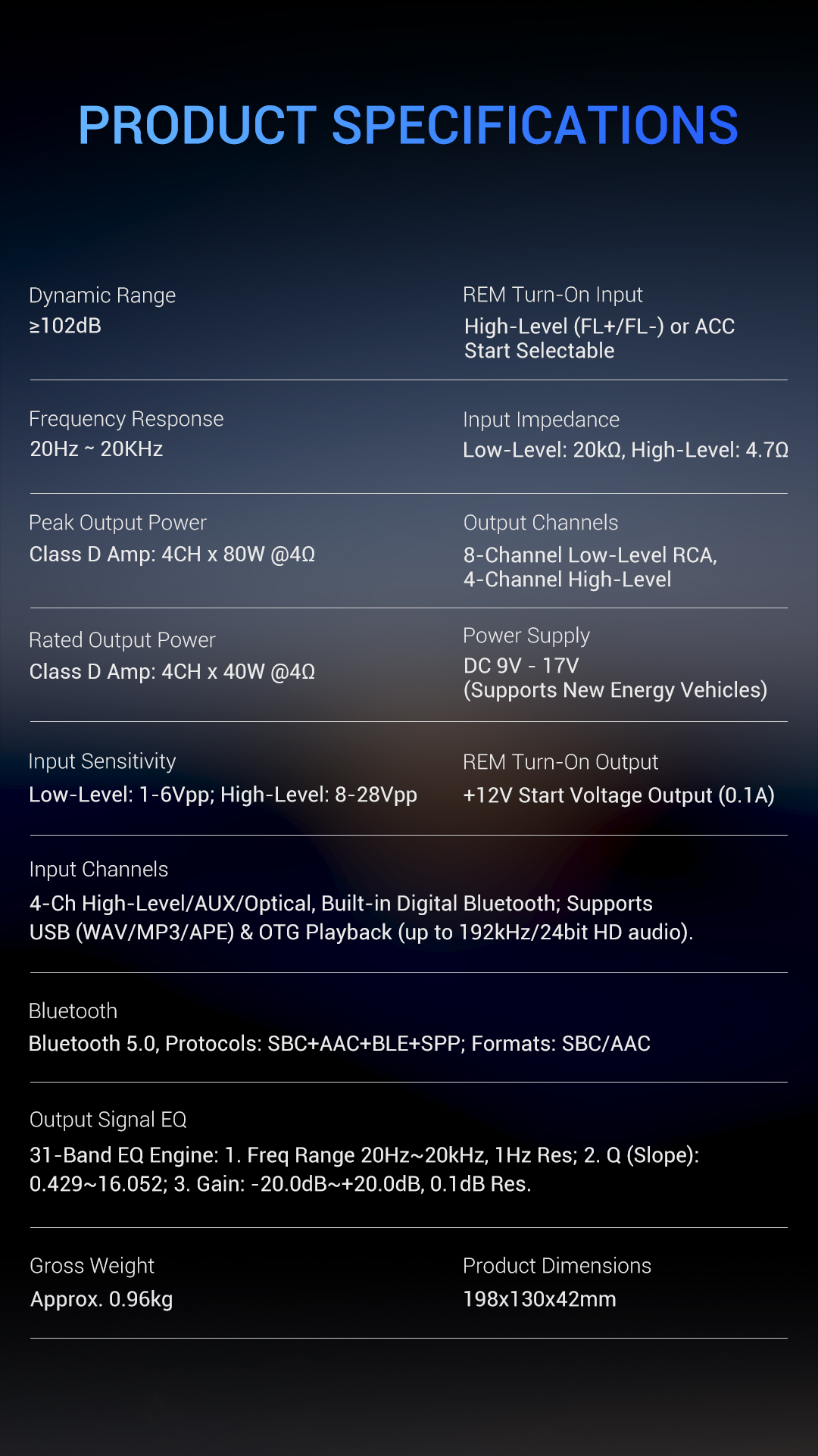

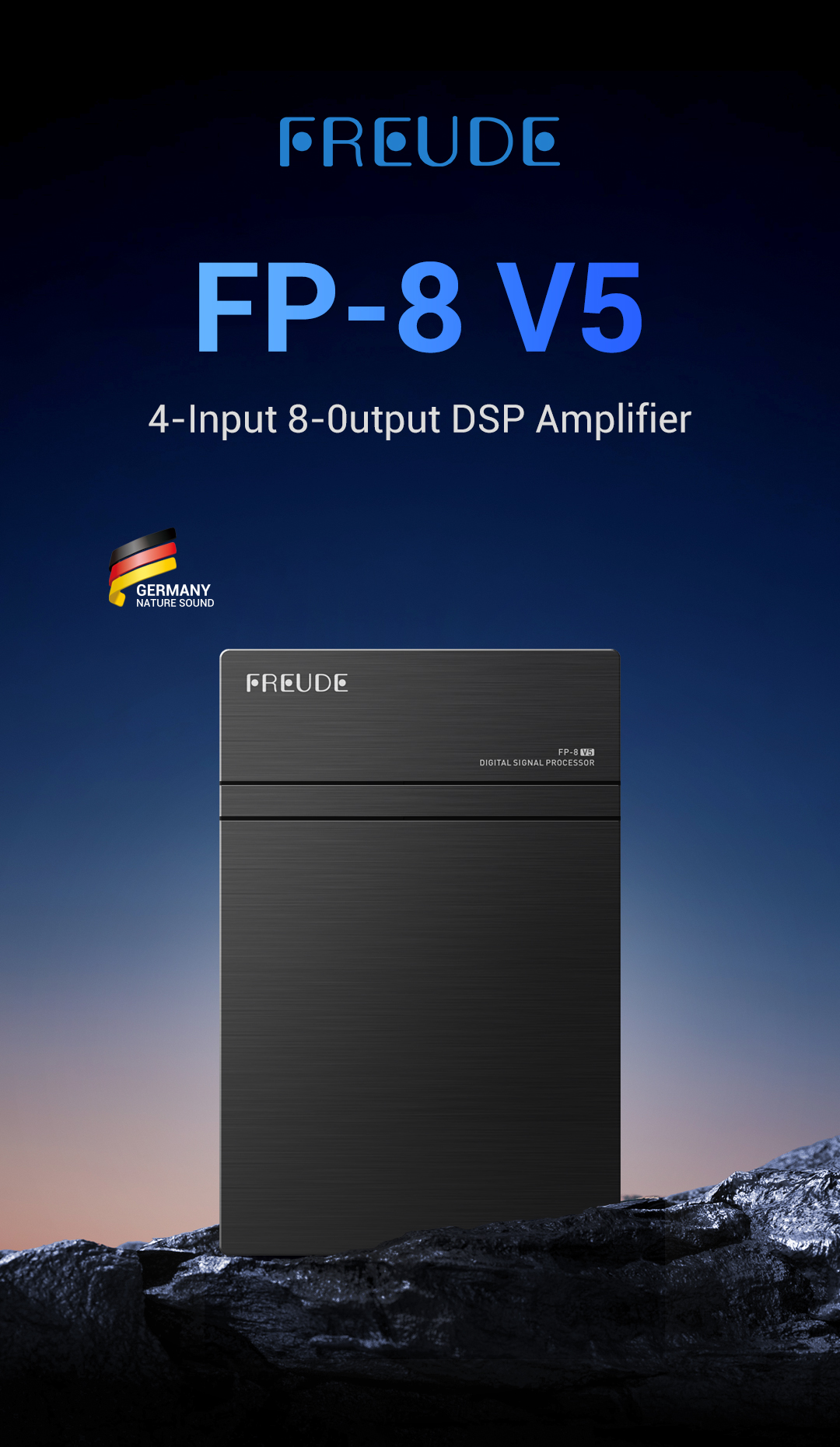

| Model: |
FP-8 V5 |
| Type: |
8 ch DSP with 4 ch Amplifier |
| Power: |
DC 9 V～17 V |
| Input Signal Type: |

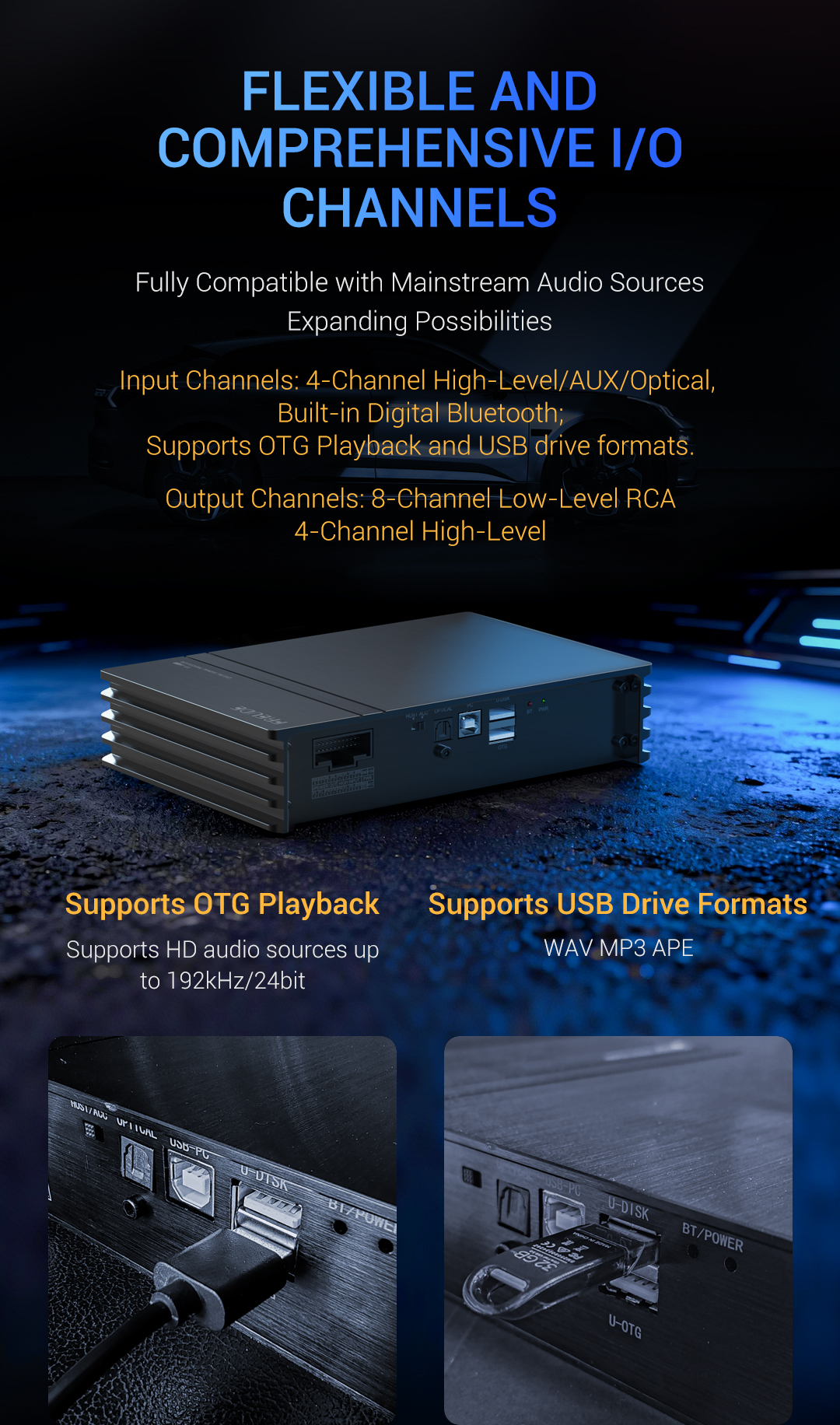

4 ch high level, 2 ch Low Level, Optical Fibre, Digital BT, USB, OTG |
| Dynamic Range: |
≥102 dB |
| S/N: |
≥98 dB |
| Frequency Response: |
20 Hz ~ 20k Hz |
| Max Power: |
4 x 80 W |
| Nom Power: |
4 x 40 W |
| Output Signal Type: |
8 ch Low Level Output, 4 ch High Level Output |
| Output Signal EQ: |
31 Levels EQ |
| Net Weight: |
0.96 kg |
| Dimension(LxWxH): |
198 x 130 x 42 mm |
