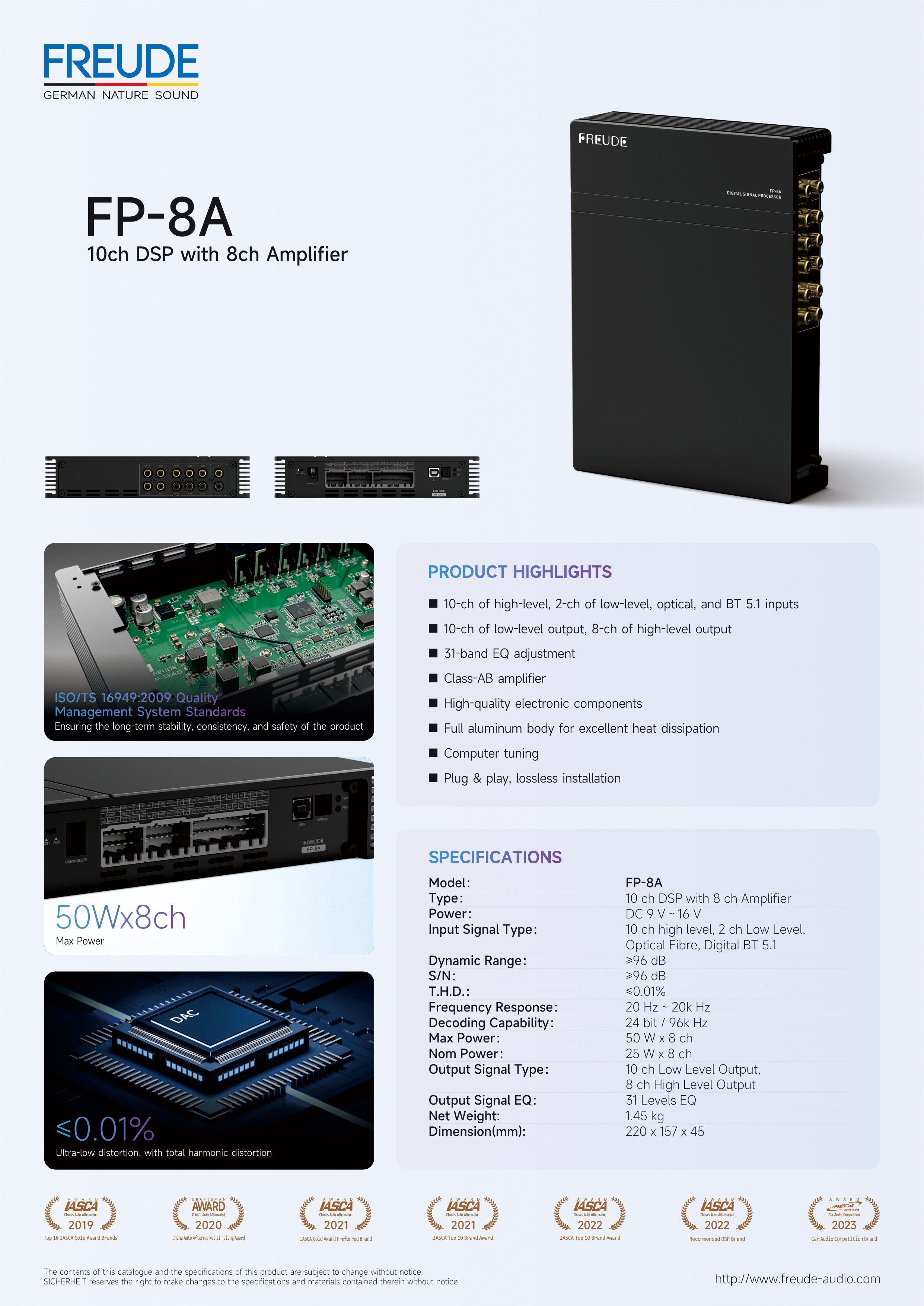

■ 10ch high-level, 2ch AUX, optical and BT inputs
■ 10ch AUX outputs, 8ch high-level outputs
■ 31-level EQ adjustment
■ Class AB amplifier
■ Automotive-grade high-quality electronic components
■ All-aluminum chassis for excellent heat dissipation
■ PC tuning
■ Plug-and-play, non‑destructive installation
| Model: |
FP-8A |
| Type: |
10ch DSP with 8ch Amplifier |
| Power: |
DC 9 V～16 V |
| Input Signal Type: |
10ch high level, 2ch AUX, Optical Fibre, Digital BT 5.1 |
| Dynamic Range: |
≥96 dB |
| S/N: |
≥96 dB |
| Frequency Response: |
20 Hz ~ 20k Hz |
| Max Power: |
50 W x 8 ch |
| Nom Power: |
25 W x 8 ch |
| Output Signal Type: |
10ch AUX Output, 8ch High Level Output |
| Output Signal EQ: |
31 Levels EQ |
| Net Weight: |
1.26 kg |
| Dimension(LxWxH): |
220 x 157 x 45 mm |
| Wired Remote Control |
Adaptable, sold separately ((FRC‑02） |
