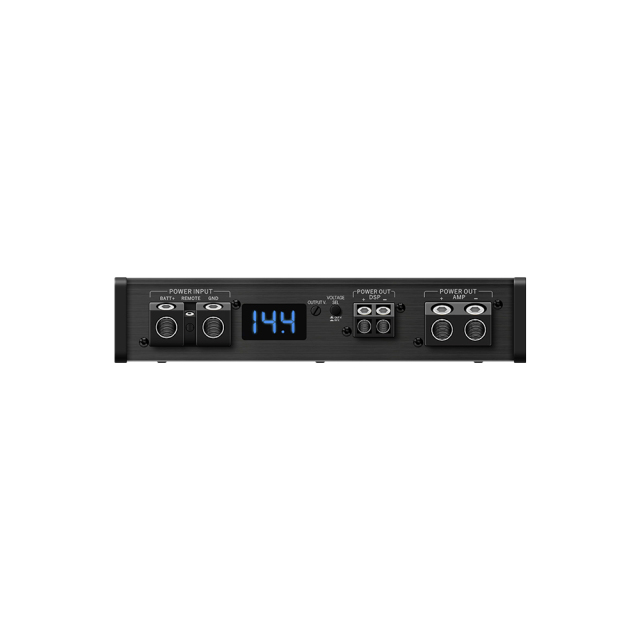

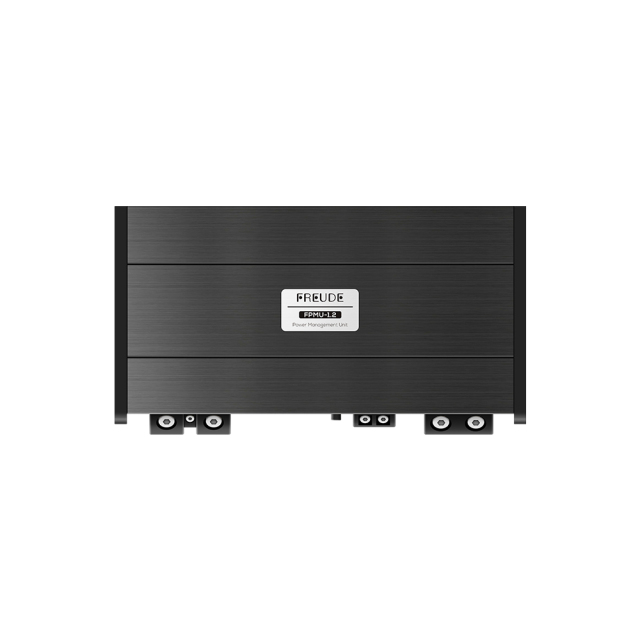

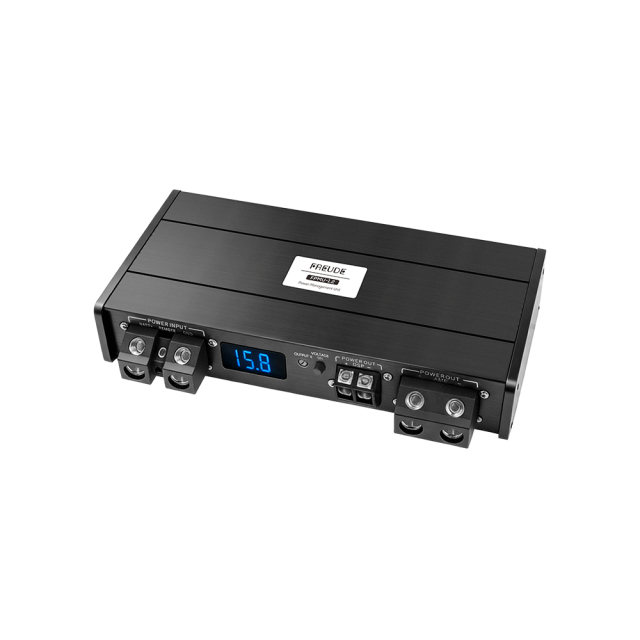

FPMU-1.2

Power Management Unit

■ Freely adjustable output voltage.
■ Instant high-power delivery: Max output up to 2000W.
■ Built-in intelligent voltage regulation module for reliable operation under complex conditions.
■ Interference and ripple filtering capability eliminates waveform distortion in the power supply and filters out interference components mixed with the current.
■ Connect to a DSP or amplifier to instantly enjoy Hi-Fi level high-definition sound quality.

Description

■ Freely adjustable output voltage.
■ Instant high-power delivery: Max output up to 2000W.
■ Built-in intelligent voltage regulation module for reliable operation under complex conditions.
■ Interference and ripple filtering capability eliminates waveform distortion in the power supply and filters out interference components mixed with the current.
■ Connect to a DSP or amplifier to instantly enjoy Hi-Fi level high-definition sound quality.

Model:	FPMU-1.2
Type:	Power Management Unit
Quiescent Current:	24mA (13.8V)
Input Voltage:	DC10-16V
Output Voltage:	DC 13.8-16.0V adjustable (±0.5%); When input voltage >16V, Output voltage automatically follows input voltage
Maximum Output Current:	130A/2000W (Max)
Conversion Efficiency:	>92% (at full load)
Protection Temperature:	+85°C
Protection Functions:	Undervoltage/Overcurrent/Short Circuit/Reverse Connection Protection
Weight:	2.7Kg
Dimensions (LxWxH):	273 x 143 x 56.5mm
