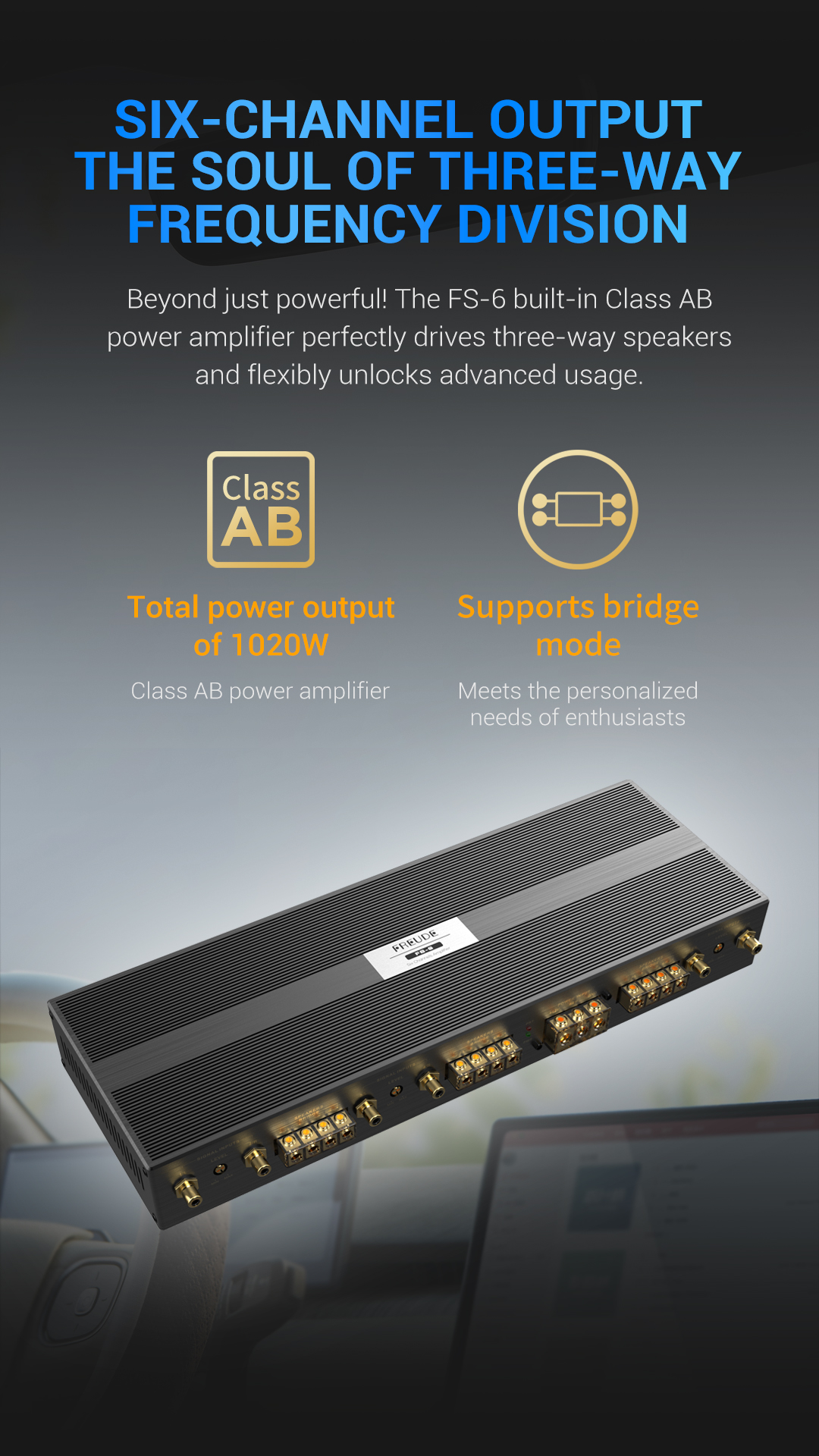

■ Six-Channel Class AB Amplifier: Active 3-Way Setup, One Unit Does It All

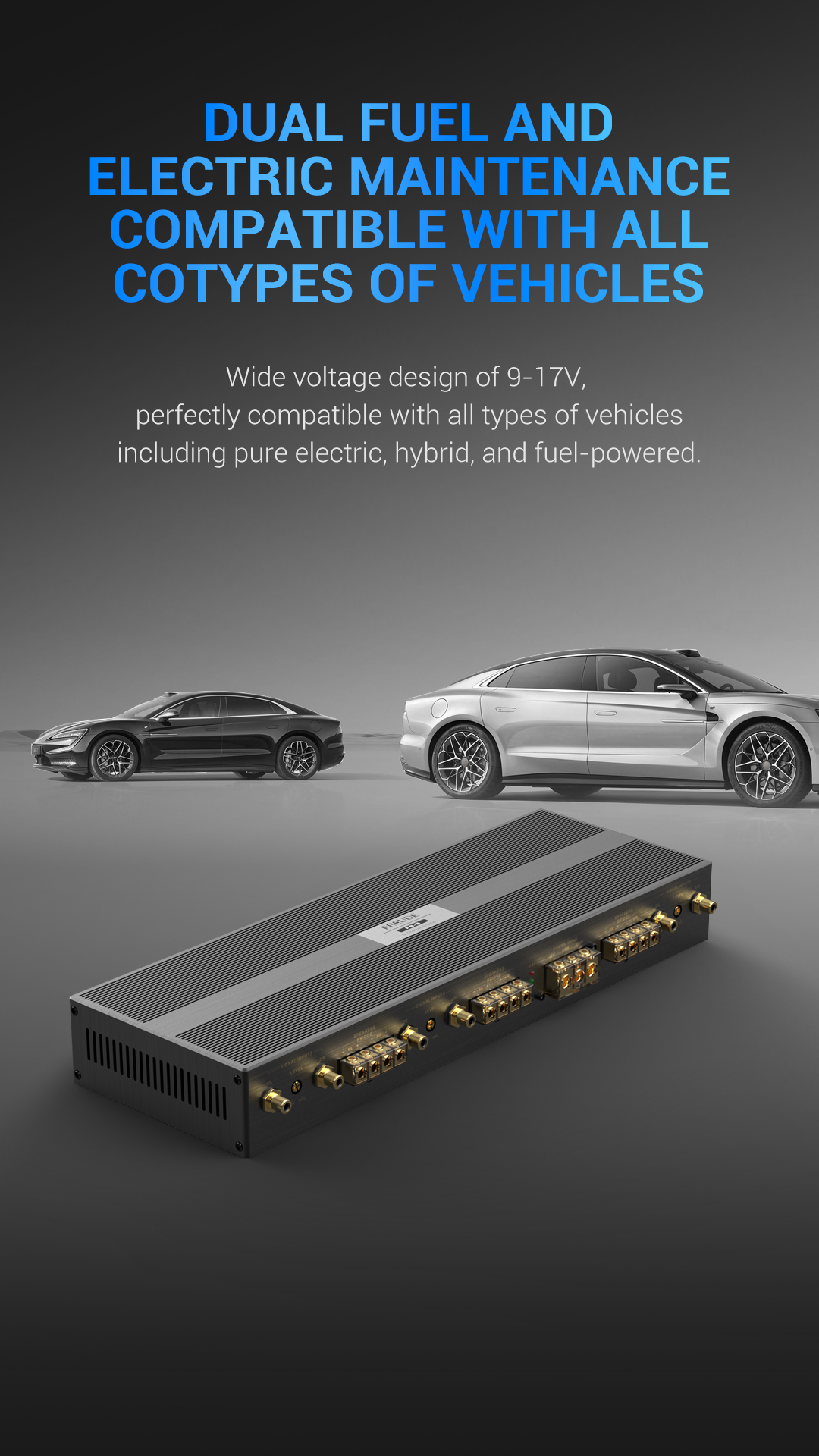

■ Wide Voltage Design (9-17V), Compatible with EV/Hybrid/Gasoline Vehicles
■ Max Power: 4 x 150W + 2 x 210W @4Ω — Powerful Performance
■ Supports Pair-Wise Bridging for Custom Configurations

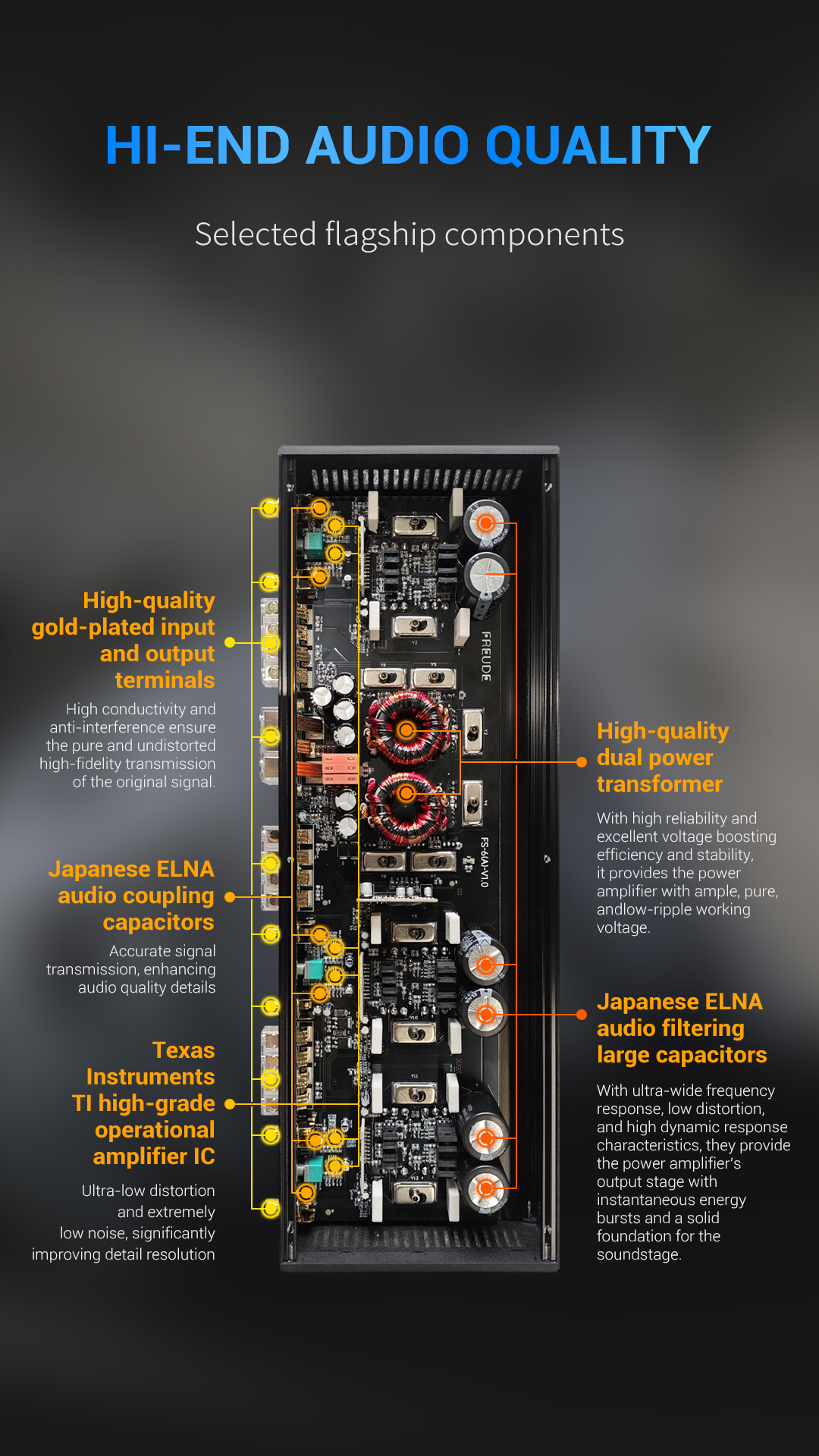

■ Texas Instruments Op-Amps for Ultra-Low Distortion & Noise, Enhancing Detail Resolution
■ Japanese ELNA Audio Coupling Capacitors for Accurate Signal Transmission & Improved Sound Detail
■ Japanese ELNA Large Audio Filter Capacitors, Delivering Wide Frequency Response, Low Distortion, and High Dynamic Performance
■ High-Quality Dual Power Transformers Provide Ample, Clean, and Low-Ripple Voltage
■ High-Quality Gold-Plated RCA Terminals
■ Certified via Multiple Tests: Humidity/Temperature/Withstand Voltage/Drop

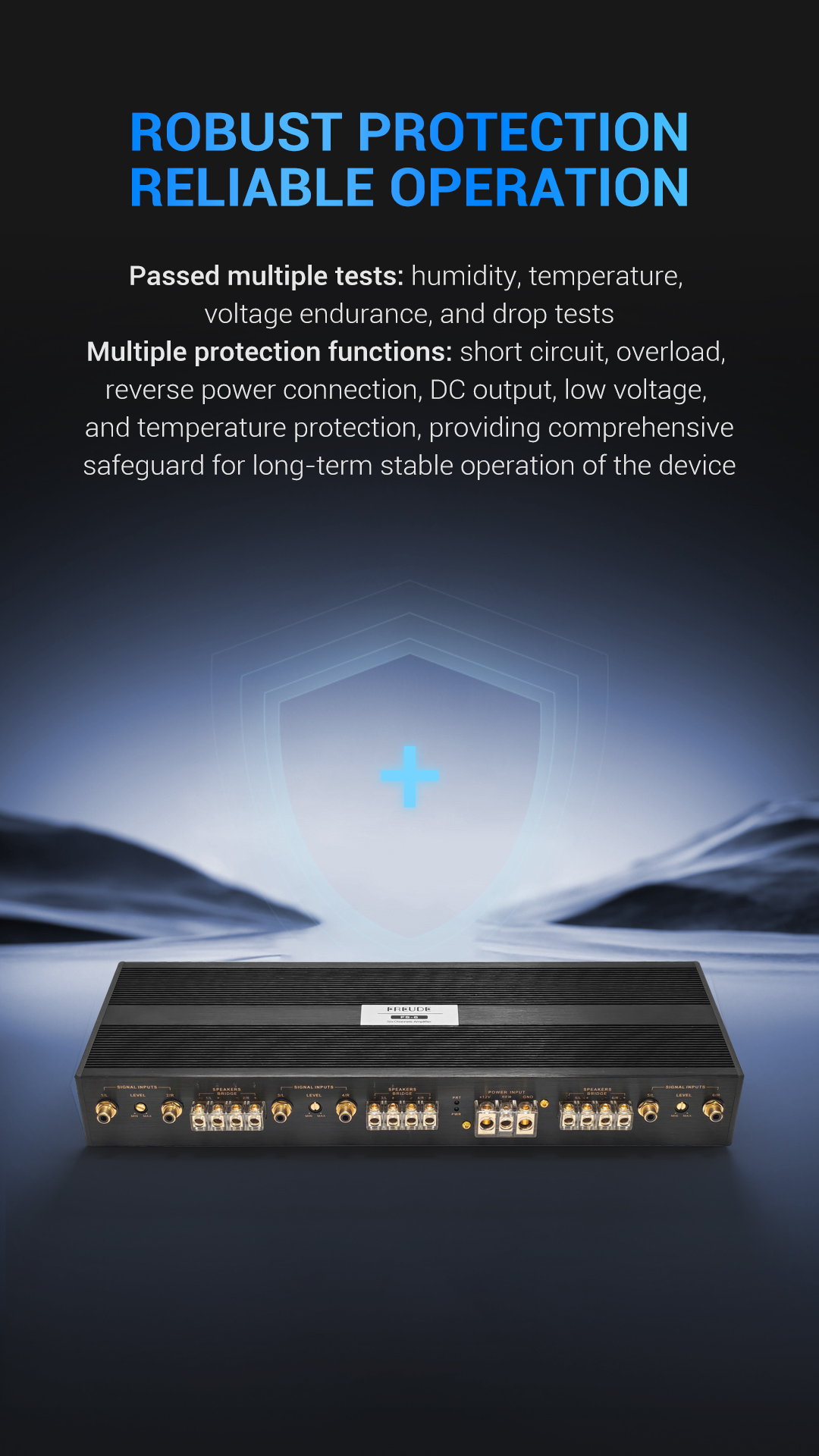

■ Comprehensive Protection: Short-Circuit/Overload/Reverse Polarity/DC Output/Low Voltage/Over-Temperature — Ensures Long-Term Stable Operation

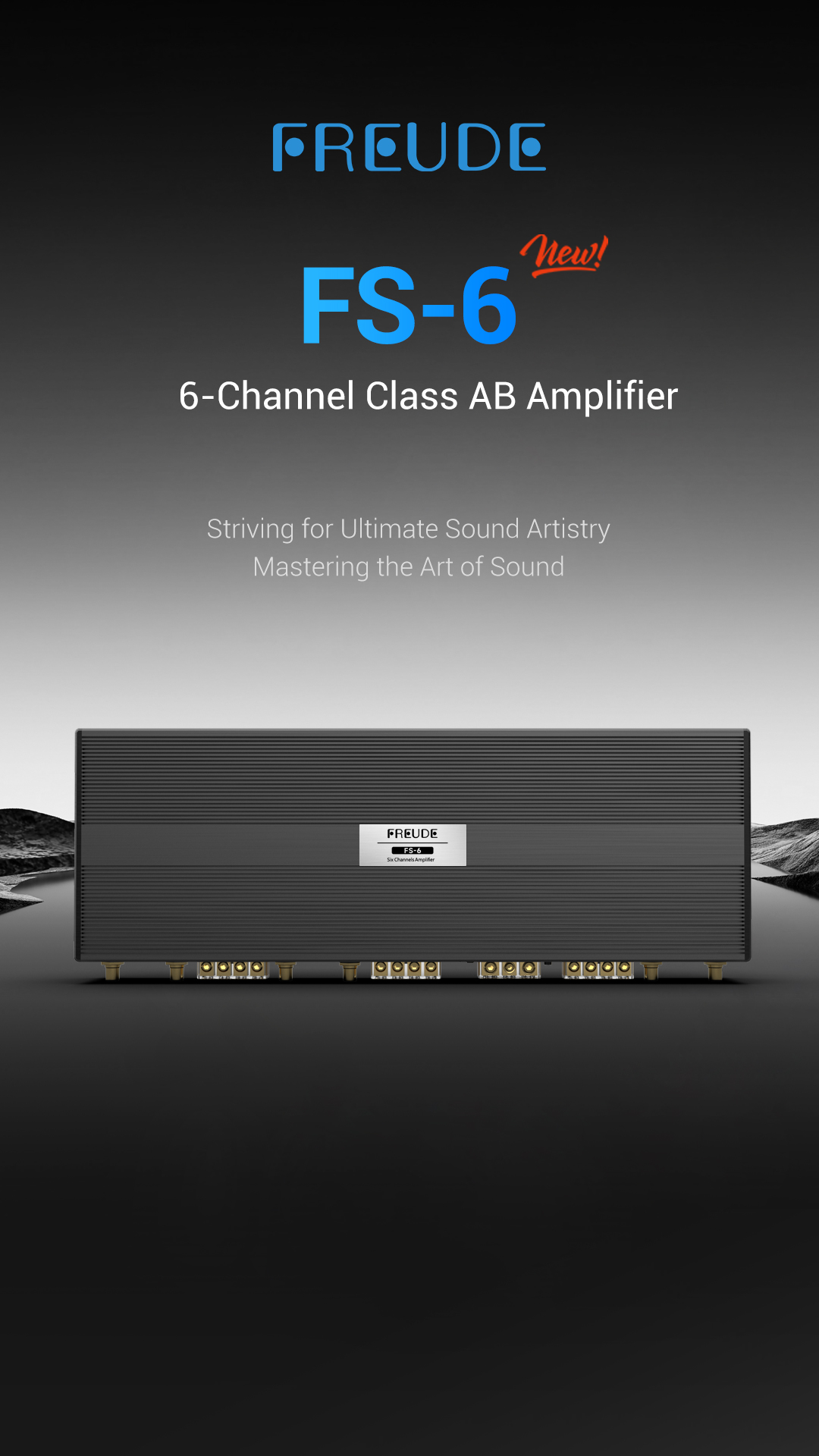

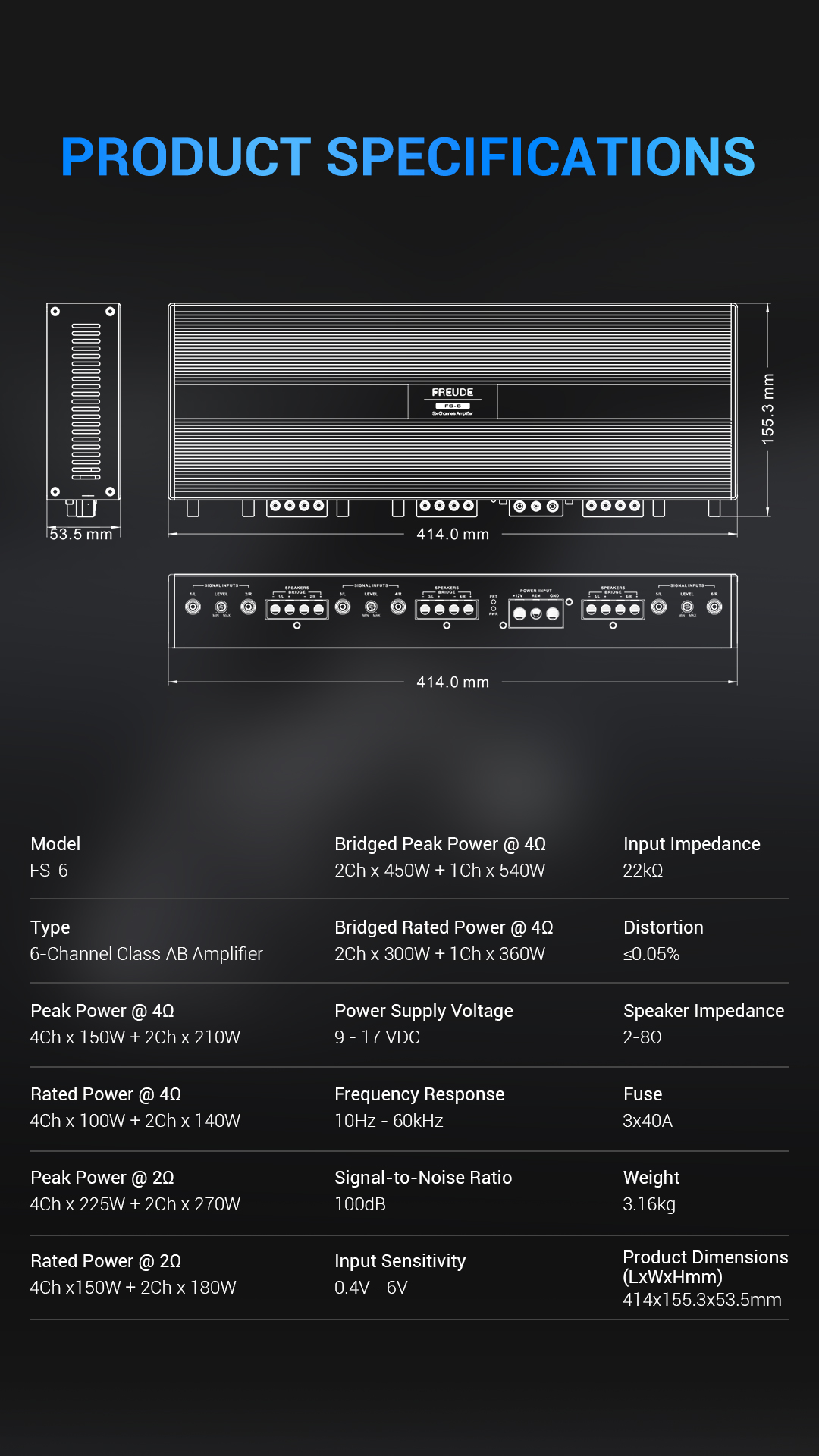

| Model: |
FS-6 |
| Type: |
Class AB Six Channels Amplifier |
| Max Power @ 2Ω: |
4 x 225W + 2 x 270W |
| Nom Power @ 2Ω: |
4 x 150W + 2 x 180W |
| Max Power @ 4Ω: |
4 x 150W + 2 x 210W |
| Nom Power @ 4Ω: |
4 x 100W + 2 x 140W |
| Bridged Max Power @ 4Ω: |
2 x 450W + 1 x 540W |
| Bridged Nom Power @ 4Ω: |
2 x 300W + 1 x 360W |
| Operating Voltage : |
9 - 17 VDC |
| Freq. Resp. Range: |
10 Hz - 60k Hz |
| Signal Noise Ratio: |
100 dB |
| Input Sensitivity: |
0.4V - 6V |
| Input Impedance: |
22k Ω |
| Degree Of Loss Of Truth: |
≤0.05% |
| Impedance: |
2 - 8 Ω |
| Fuse: |
3 x 40A |
| Weight: |
3.16 kg |

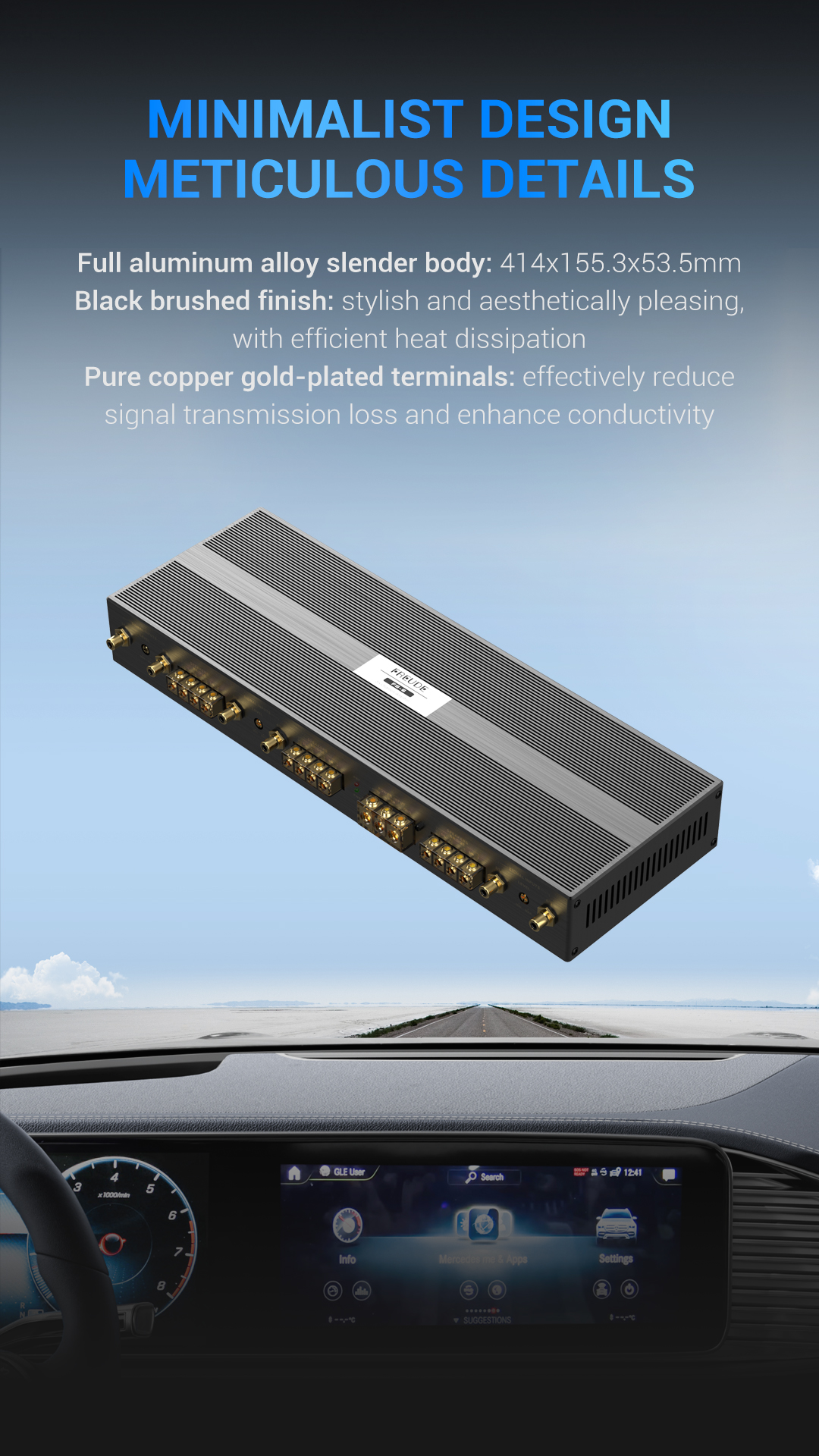

| Dimensions (LxWxH): |
414 x 155.3 x 53.5 mm |
